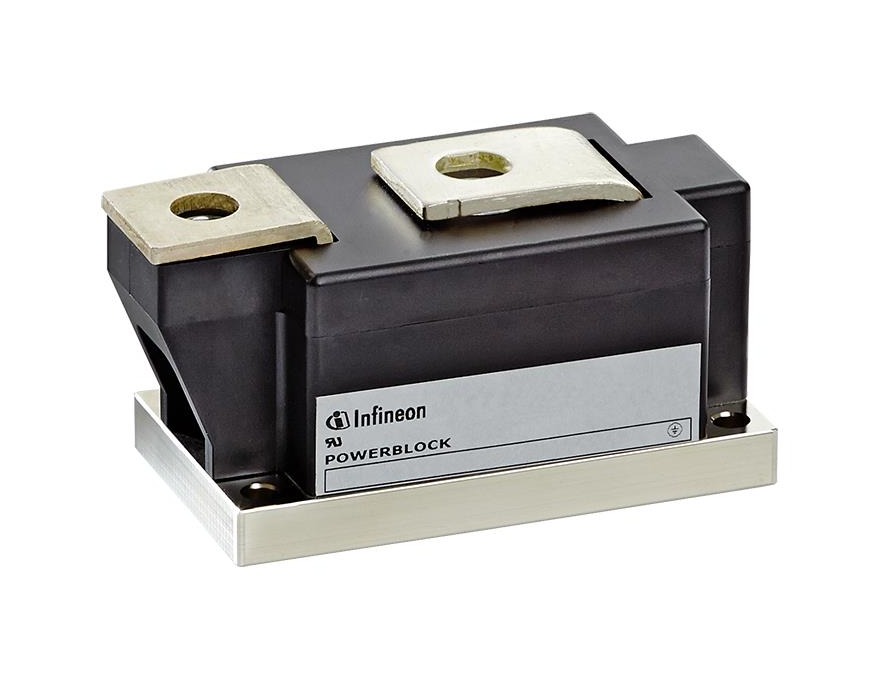

DZ540N22K Infineon - Diode Module

DZ540N22K Description

DZ540N22K is an Infineon 2,200 V / 540 A single diode module, 50 mm PowerBLOCK.

USComponent supplies DZ540N22K and other Infineon / eupec power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon DZ540N22K is used for Rectifiers, freewheeling and power supplies.

Key Specifications

DZ540N22K is an Infineon (eupec) 2,200 V / 540 A single diode module, 50 mm PowerBLOCK. Key data from the Infineon type designation and Product Discontinuation notice.

Parameter	Value
Product type	Single diode module
Repetitive peak voltage (type code)	2,200 V
Current class (type code)	540 A
Package	50 mm PowerBLOCK (BG-PB501-1)

Replacement for discontinued part: Infineon recommends DZ540N22K as the replacement for DZ540N20K.

Technical document (PDF)  |  Request a quote for DZ540N22K (reply within 24 hours)
