DZ1100N22K Infineon - Diode Module

Category: Diode & Rectifier Modules

Specifications: 2200V, 1100A

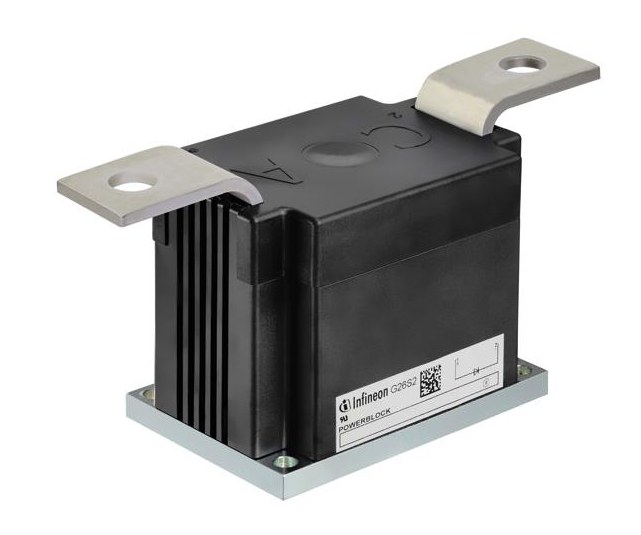

DZ1100N22K Infineon Diode Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

DZ1100N22K Description

DZ1100N22K is a 2200 V / 1100 A single diode diode module from Infineon Technologies. Typical applications: rectifier for Drives Applications, Rectifiers for UPS, Battery chargers.

USComponent supplies DZ1100N22K and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Infineon DZ1100N22K is used for Rectifier for Drives Applications, Rectifiers for UPS, Battery chargers.

Key Specifications

DZ1100N22K is a 2200 V / 1100 A single diode diode module from Infineon Technologies (70 mm base plate module). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeDiode module
ConfigurationSingle diode
Repetitive peak reverse voltage (VRRM)2200 V
Average forward current (IFAVM)1100 A
Package70 mm base plate module
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DZ1100N22K (reply within 24 hours)

Related Part Numbers

DZ1070N18KDZ1070N22KDZ1070N26KDZ1070N28K
DZ3600S17K3_B2DZ435N36KDZ435N40KDZ540N04K
DZ540N06KDZ540N12KDZ540N14KDZ540N16K
DZ540N20KDZ540N22KDZ540N26KDZ600N02K
