DZ1070N22K Infineon - Rectifier Bridge

DZ1070N22K Description

The Infineon Technologies DZ1070N22K is a rectifier bridge, rated for 2200 V and 1070 A. Diode modules like this are common in rectifier front ends, DC power supplies, welders and plating equipment.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the DZ1070N22K, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Infineon DZ1070N22K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

DZ1070N22K is a 2,200 V, 1070 A diode module (single). Source: manufacturer datasheet.

Parameter	Value
Product type	Diode module (single)
Repetitive peak reverse voltage (VRRM)	2,200 V
Rated forward / output current	1070 A

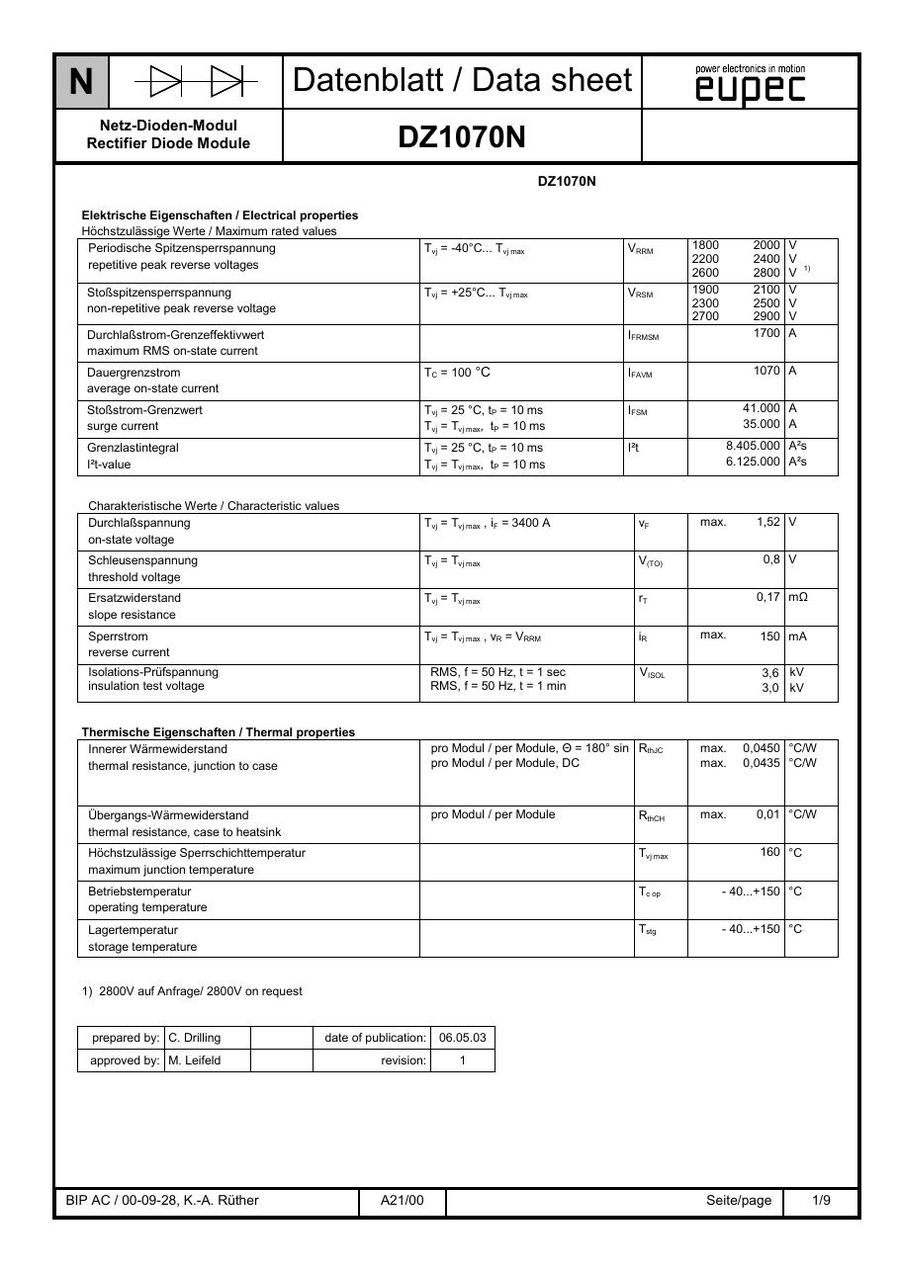

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for DZ1070N22K (reply within 24 hours)
