DZ540N26K Infineon - IGBT Module

Category: Rectifier & Schottky Diodes

Specifications: 2600V, 540A

DZ540N26K Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

DZ540N26K Description

Infineon Technologies makes the DZ540N26K, a rectifier diode. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the DZ540N26K, and please confirm ratings against the datasheet before ordering.

Target Applications

Infineon DZ540N26K is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

DZ540N26K is an Infineon diode module (single diode). Source: manufacturer datasheet.

ParameterValue
Product typeDiode module
ConfigurationSingle diode
Repetitive peak reverse voltage (VRRM)2,600 V
Average forward current (IFAVM, TC 100 °C)540 A
Surge current (IFSM)16,500 A
PackagePowerBLOCK

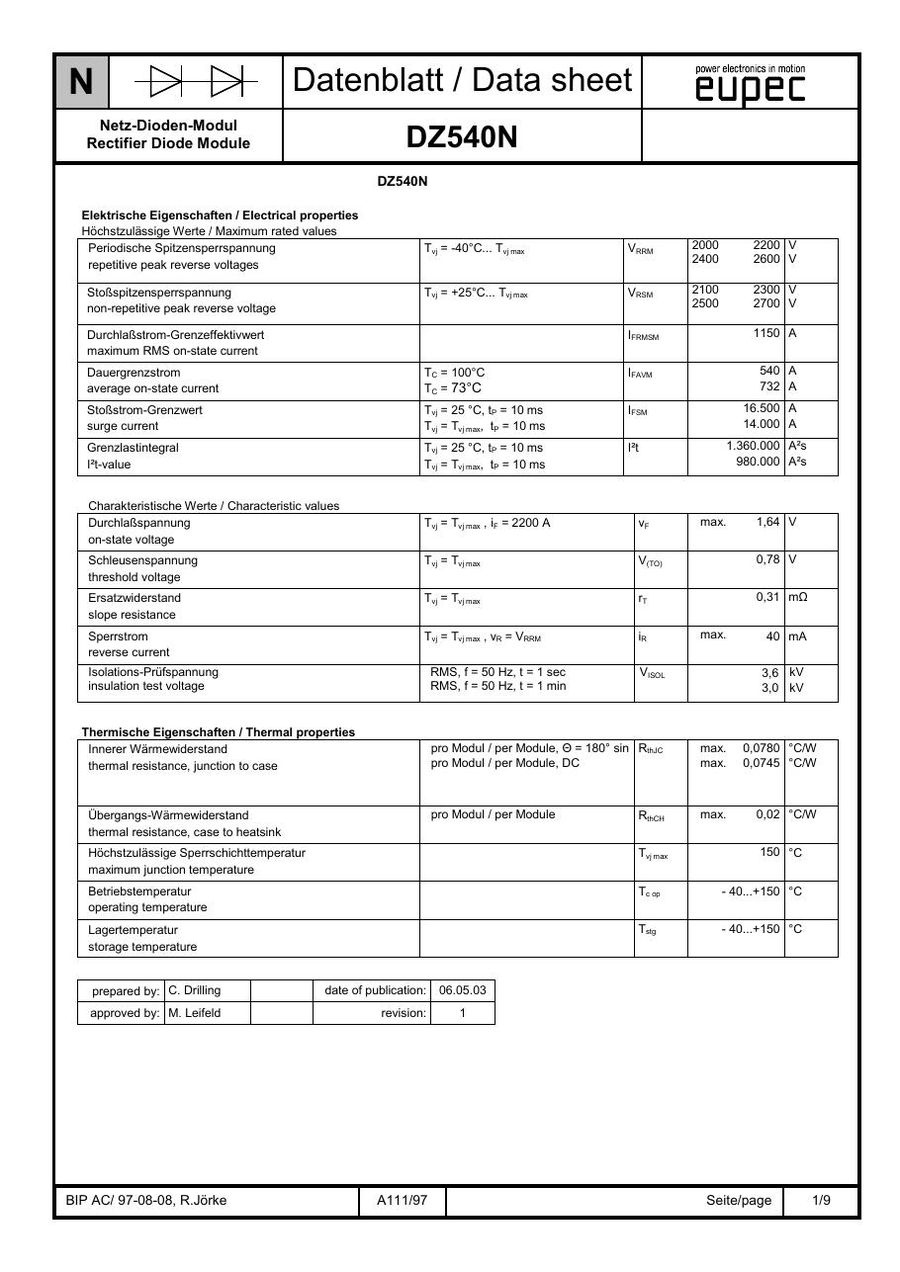

DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DZ540N26K (reply within 24 hours)

Related Part Numbers

DZ540N22K
2200V, 540A		DZ540N20K
2000V, 540A		DZ540N16K
1600V, 540A		DZ540N14K
1400V, 540A
DZ1070N26K
1070A/2600V		DZ540N12K
1200V, 540A		DZ540N06K
600V, 540A		DZ540N04K
400V, 540A
DZ540N22KB01
2200V		DZ600N02K
200V, 600A		DZ600N04K
400V, 600A		DZ600N06K
600V, 600A
DZ600N08K
800V		DZ600N12
1200V, 600A		DZ600N12K
1200V, 600A		DZ600N14
1400V, 600A
