DF1400R12IP4D Infineon - IGBT Module

Discontinued: Infineon recommended replacement: FF1400R12IP4. We supply both the original DF1400R12IP4D and the replacement - check the datasheets before switching.

Category: IGBT Modules

Specifications: 1200V, 1400A

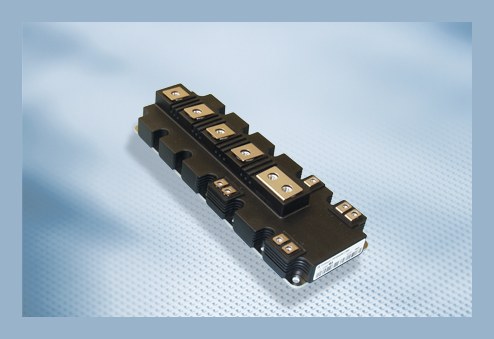

DF1400R12IP4D Infineon IGBT Module

Representative image – actual product may differ

Discontinued by the manufacturer - we source original new and surplus stock. Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DF1400R12IP4D Description

DF1400R12IP4D is a 1200 V, 1400 A Infineon PrimePACK 3 chopper IGBT module (IGBT4), used for chopper and brake circuits in high-power converters.

USComponent supplies DF1400R12IP4D and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended Operation Temperature Tvj op
  • High DC Stability
  • 4 kV AC 1min Insulation
  • Package with CTI > 400
  • High Creepage and Clearance Distances
  • High Power and Thermal Cycling Capability
  • High Power Density
  • Substrate for Low Thermal Resistance

Target Applications

Infineon DF1400R12IP4D is used for Chopper and brake circuits in high-power converters.

Key Specifications

DF1400R12IP4D is a 1,200 V, 1,400 A Infineon PrimePACK 3 IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
ConfigurationChopper (IGBT with enlarged free-wheeling diode)
Collector-emitter voltage (VCES)1,200 V
Collector current (IC nom)1,400 A
TechnologyTrench/Fieldstop IGBT4 with Emitter Controlled diode
PackagePrimePACK 3
Max. operating junction temperature150 °C

Technical document (PDF)  |  Request a quote for DF1400R12IP4D (reply within 24 hours)
