DF600R12IP4D Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 600A

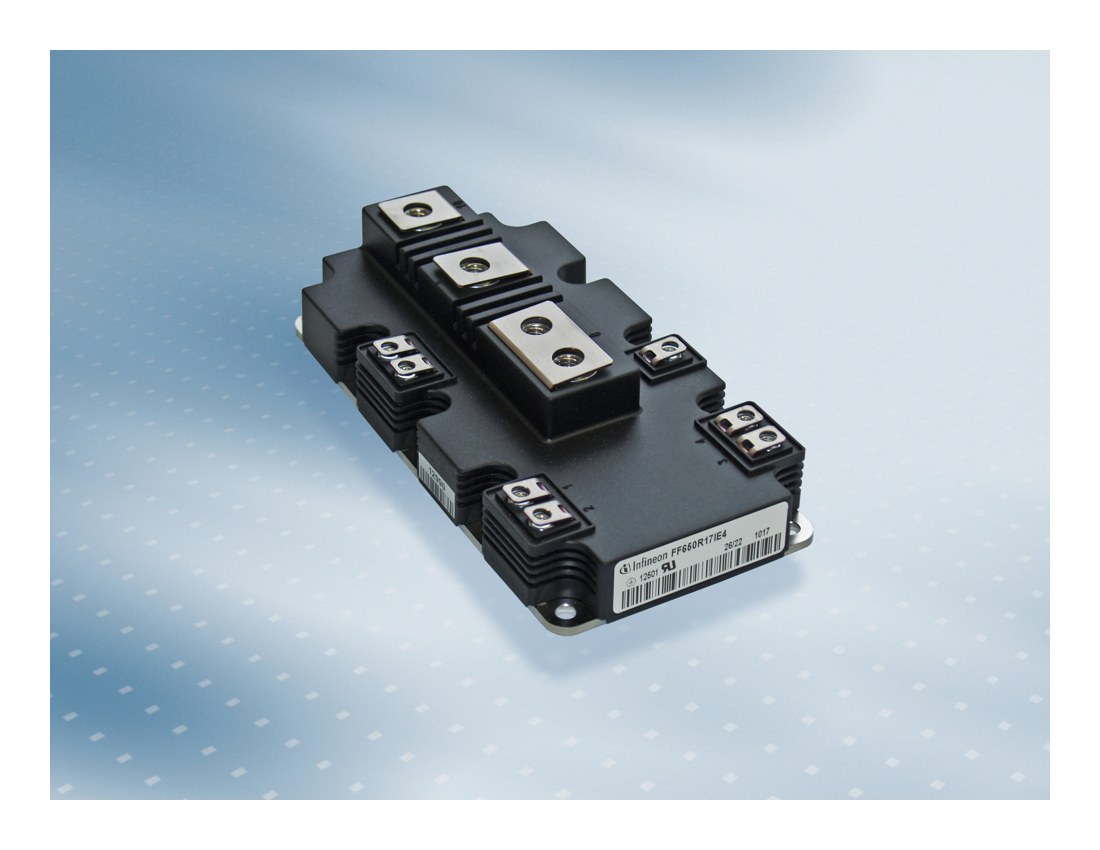

DF600R12IP4D Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DF600R12IP4D Description

DF600R12IP4D is a 1200 V / 600 A chopper / booster IGBT module from Infineon Technologies. Typical applications: chopper Applications.

USComponent supplies DF600R12IP4D and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended Operation Temperature Tvj op
  • High DC Stability
  • High Short Circuit Capability, Self Limiting Short
  • Kurzschlussstrom Circuit Current
  • Vcesat with positive Temperature Coefficient
  • Low Vcesat
  • High Creepage and Clearance Distances
  • High Power and Thermal Cycling Capability

Target Applications

Infineon DF600R12IP4D is used for Chopper Applications.

Key Specifications

DF600R12IP4D is a 1200 V / 600 A chopper / booster IGBT module from Infineon Technologies (PrimePACK 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationChopper / booster
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)600 A
PackagePrimePACK 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DF600R12IP4D (reply within 24 hours)
