DD710N16K Infineon - Diode Module

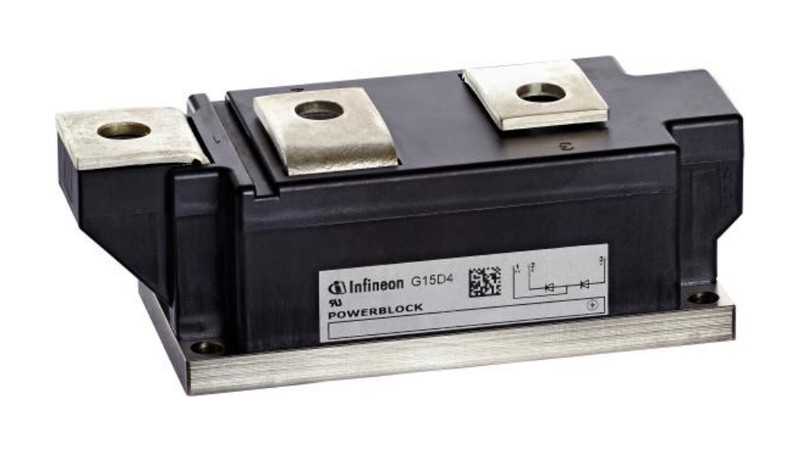

DD710N16K Description

DD710N16K is a 1,600 V / 710 A dual rectifier diode module (PowerBLOCK, 60 mm baseplate) from Infineon Technologies (eupec) with pressure contact technology. Typical applications: Rectifiers for drives applications, Rectifiers for UPS, Battery chargers. Infineon has discontinued DD710N16K (discontinuation notice Dec 19, 2022, last order date Jun 15, 2023).

USComponent supplies discontinued Infineon / eupec modules. Request a quote for DD710N16K availability and price - we reply within 24 hours.

Summary of Features

Target Applications

Infineon DD710N16K is used for Rectifiers for drives applications, Rectifiers for UPS and Battery chargers.

Key Specifications

DD710N16K is a 1,600 V / 710 A dual rectifier diode module (PowerBLOCK, 60 mm baseplate) from Infineon Technologies (eupec) with pressure contact technology. Source: Infineon datasheet (Revision 3.4, 2019-05-23).

Parameter	Value
Manufacturer	Infineon Technologies (eupec)
Product type	Rectifier diode module
Housing	PowerBLOCK, 60 mm baseplate, electrically insulated
Configuration	Dual diode (two diodes in series)
Technology	Pressure contact (Si pellet with pressure contact)
Repetitive peak reverse voltage (VRRM)	1,600 V
Non-repetitive peak reverse voltage (VRSM)	1,700 V
Average forward current (IFAVM)	710 A (TC = 100 °C)
RMS forward current (IFRMSM)	1,100 A
Surge current (IFSM, 10 ms)	26,000 A (Tvj = 25 °C); 22,000 A (Tvj max)
I²t value (10 ms)	3,380,000 A²s (25 °C); 2,420,000 A²s (Tvj max)
Forward voltage (vF)	1.31 V max. (iF = 2500 A, Tvj max)
Threshold voltage V(TO) / slope resistance rT	0.75 V / 0.145 mΩ (max.)
Reverse current (iR)	40 mA max. (Tvj max, VRRM)
Thermal resistance junction-case (RthJC)	0.0325 K/W per module, 0.065 K/W per arm (180° sin)
Thermal resistance case-heatsink (RthCH)	0.01 K/W per module
Max. junction temperature (Tvj max)	150 °C
Operating / storage temperature	-40 to +150 °C
Isolation test voltage (VISOL)	3.0 kV (RMS, 1 min); 3.6 kV (1 s)
Internal isolation	AlN
Mounting torque (M1)	6 N·m
Terminal torque (M2)	12 N·m
Creepage distance	19 mm
Weight	1,500 g typ.
UL file	E 83335
Status (Infineon)	Discontinued, last order date Jun 15, 2023
Applications (datasheet)	Rectifiers for drives applications, Rectifiers for UPS, Battery chargers
Datasheet	Available on this page (PDF)
