DD750S65K3 Infineon - Diode Module

Category: Diode & Rectifier Modules

Specifications: 6500V, 750A

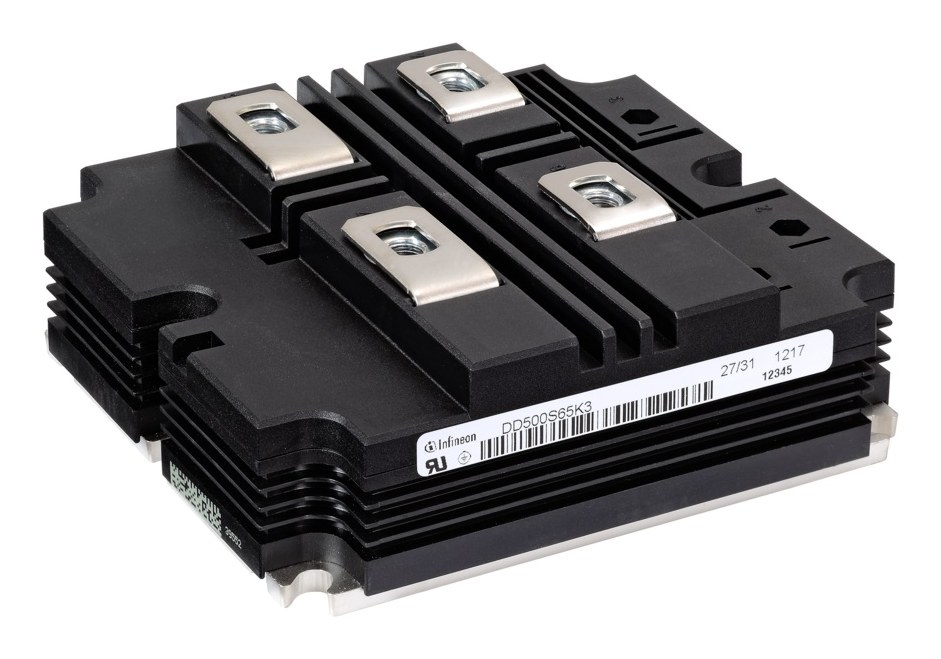

DD750S65K3 Infineon Diode Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

DD750S65K3 Description

DD750S65K3 is a 6500 V, 750 A Infineon IHV-B Diode module (dual diode), used for traction converters and medium-voltage drives.

USComponent supplies DD750S65K3 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 6,500 V / 750 A dual diode module
  • AlSiC base plate for increased thermal cycling capability
  • Extended insulation: 10.4 kV AC, 60 s; CTI > 600
  • Storage temperature down to -55 °C

Target Applications

Infineon DD750S65K3 is used for Traction converters and medium-voltage drives.

Key Specifications

DD750S65K3 is a 6,500 V, 750 A Infineon Diode module. Source: manufacturer datasheet.

ParameterValue
Product typeDiode module
ConfigurationDual diode
Repetitive peak reverse voltage (VRRM)6,500 V
Forward current (IF)750 A
TechnologyEmitter Controlled 3 diodes
PackageIHV-B, AlSiC base plate

Technical document (PDF)  |  Request a quote for DD750S65K3 (reply within 24 hours)
