DD540N16K Infineon - BRIDGE RECTIFIER

DD540N16K Description

Infineon Technologies makes the DD540N16K, a 1600 V, 540 A rectifier bridge. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.

Request a quote for the DD540N16K and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Infineon DD540N16K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

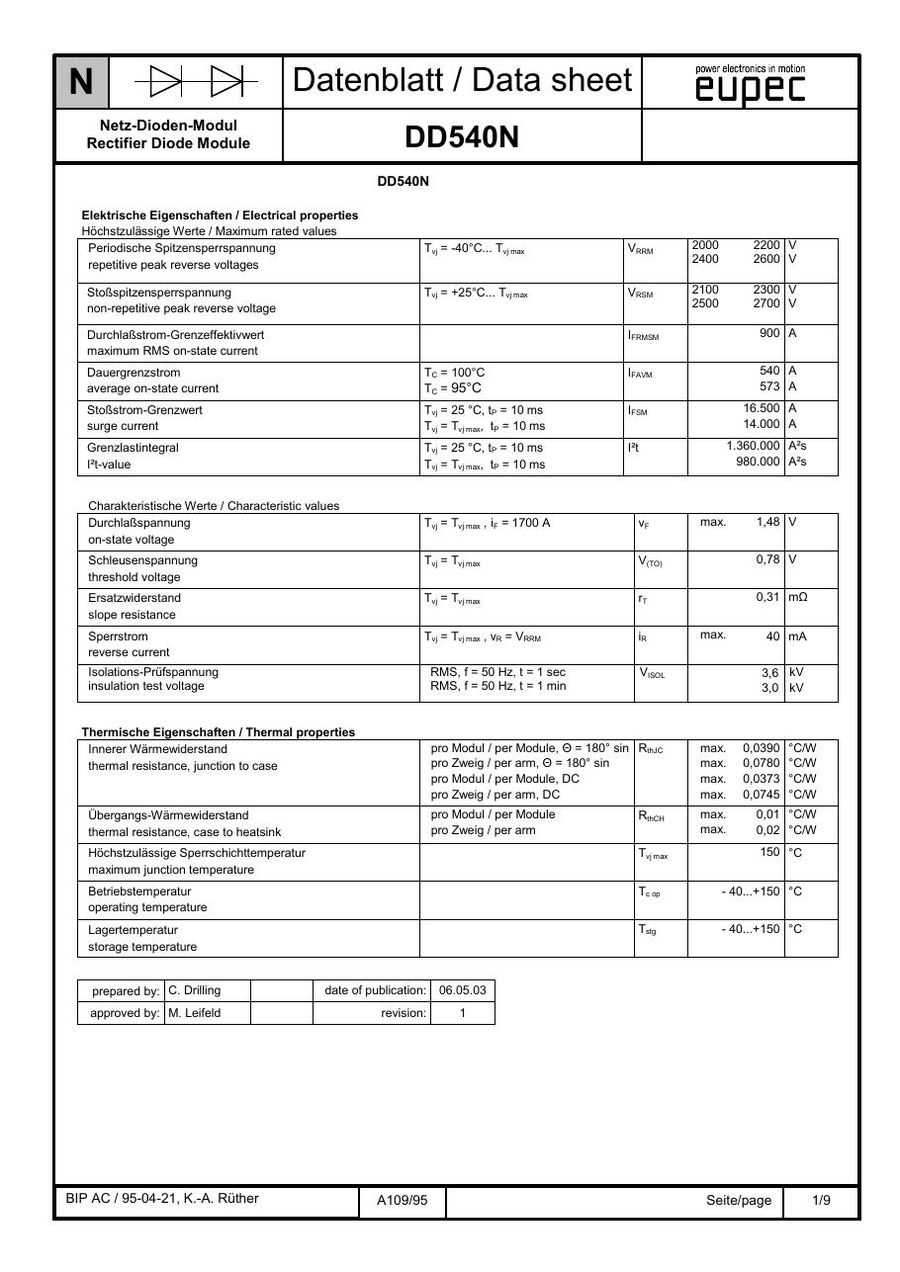

DD540N16K is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

Parameter	Value
Manufacturer	eupec (Infineon Technologies)
Product type	PowerBLOCK diode module
Repetitive peak reverse voltage (VRRM), series range	2000 to 2600 V
Average forward current (IFAVM), 180° el sin	540 A at Tc = 100 °C
RMS current (IFRMSM)	900 A
Surge current (IFSM), 10 ms, Tvj max	14000 A
I²t, 10 ms, Tvj max	980 × 10³ A²s
Threshold voltage V(T0)	0.78 V
Slope resistance rT	0.31 mΩ
Thermal resistance RthJC	0.078 °C/W
Thermal resistance RthCK	0.02 °C/W
Max. junction temperature Tvj max	150 °C
Package (outline)	DP60

Technical document (PDF)  |  Request a quote for DD540N16K (reply within 24 hours)
