DD261N16K Infineon - Diode Module

Category: Diode & Rectifier Modules

Specifications: 1600V, 261A

DD261N16K Infineon Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD261N16K Description

Infineon Technologies makes the DD261N16K, a diode module. Diode modules like this are common in rectifier front ends, DC power supplies, welders and plating equipment.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the DD261N16K, and please confirm ratings against the datasheet before ordering.

Target Applications

Infineon DD261N16K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

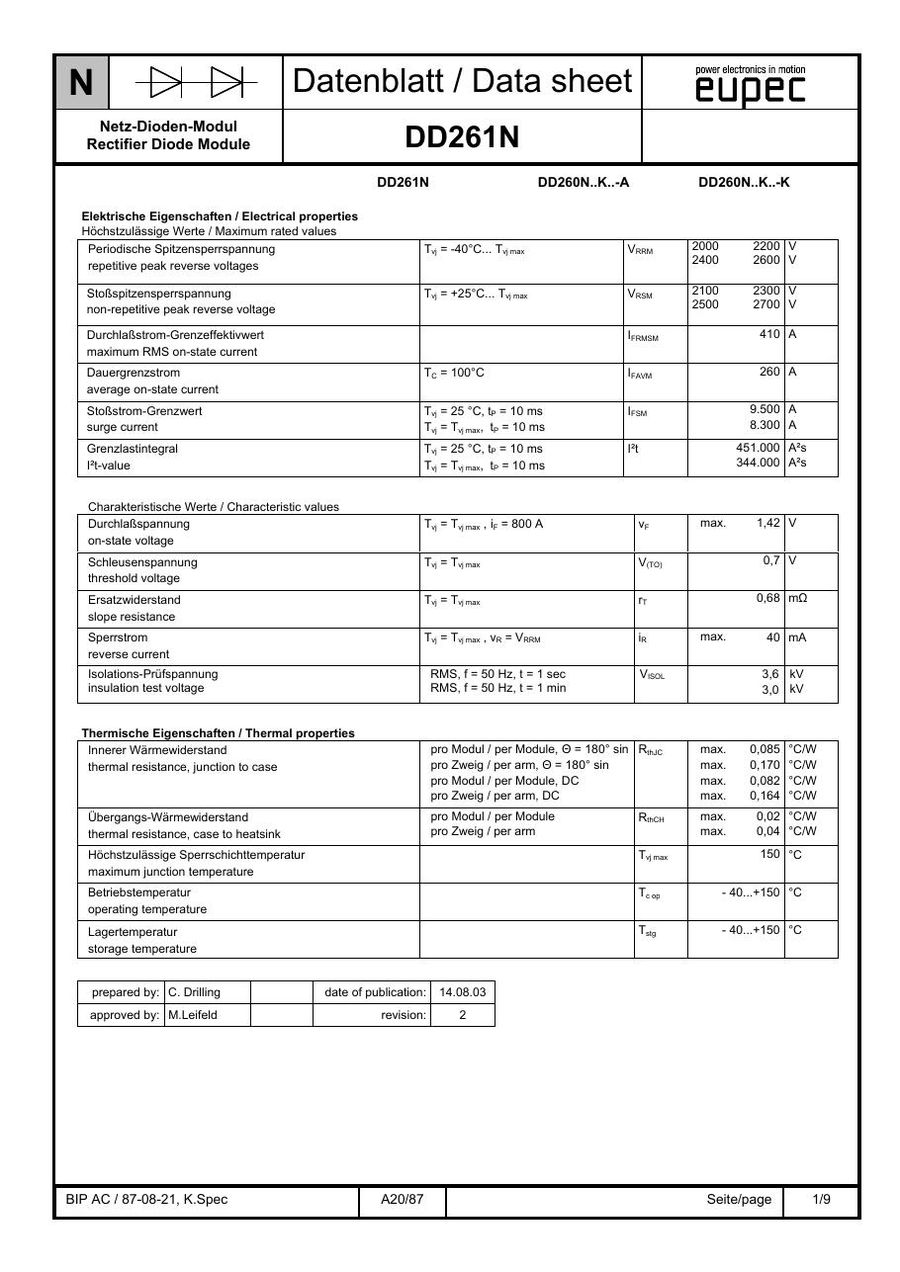

DD261N16K is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK diode module
Repetitive peak reverse voltage (VRRM), series range2000 to 2600 V
Average forward current (IFAVM), 180° el sin260 A at Tc = 100 °C
RMS current (IFRMSM)410 A
Surge current (IFSM), 10 ms, Tvj max8300 A
I²t, 10 ms, Tvj max344 × 10³ A²s
Threshold voltage V(T0)0.70 V
Slope resistance rT0.68 mΩ
Thermal resistance RthJC0.17 °C/W
Thermal resistance RthCK0.04 °C/W
Max. junction temperature Tvj max150 °C
Package (outline)DP50

Technical document (PDF)  |  Request a quote for DD261N16K (reply within 24 hours)
