DD540N22K Infineon - Rectifier Bridge

DD540N22K Description

Rated at 2200 V and 540 A, the Infineon DD540N22K is a diode module (dual). Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

Request a quote for the DD540N22K and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Infineon DD540N22K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

DD540N22K is a 2200 V / 540 A diode module from Infineon Technologies (eupec). Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Infineon Technologies (eupec)
Product type	Diode module (rectifier)
Configuration	Dual diode (two diodes in series)
Repetitive peak reverse voltage (VRRM)	2000 / 2200 / 2400 / 2600 V (series); 2200 V for DD540N22
Average forward current (IFAVM)	540 A (Tc = 100 °C); 573 A (Tc = 95 °C)
RMS forward current (IFRMSM)	900 A
Surge current (IFSM)	16500 A (Tvj = 25 °C, tp = 10 ms); 14000 A (Tvj max, tp = 10 ms)
I²t-value (I²t)	1360000 A²s (Tvj = 25 °C, tp = 10 ms); 980000 A²s (Tvj max)
On-state voltage (vF)	1.48 V max (Tvj max, iF = 1700 A)
Insulation test voltage (VISOL)	3.0 kV (RMS, 50 Hz, 1 min); 3.6 kV (1 s)
Max junction temperature (Tvj max)	150 °C
Thermal resistance (RthJC)	0.0390 °C/W per module, 0.0780 °C/W per arm (180° sin, max)

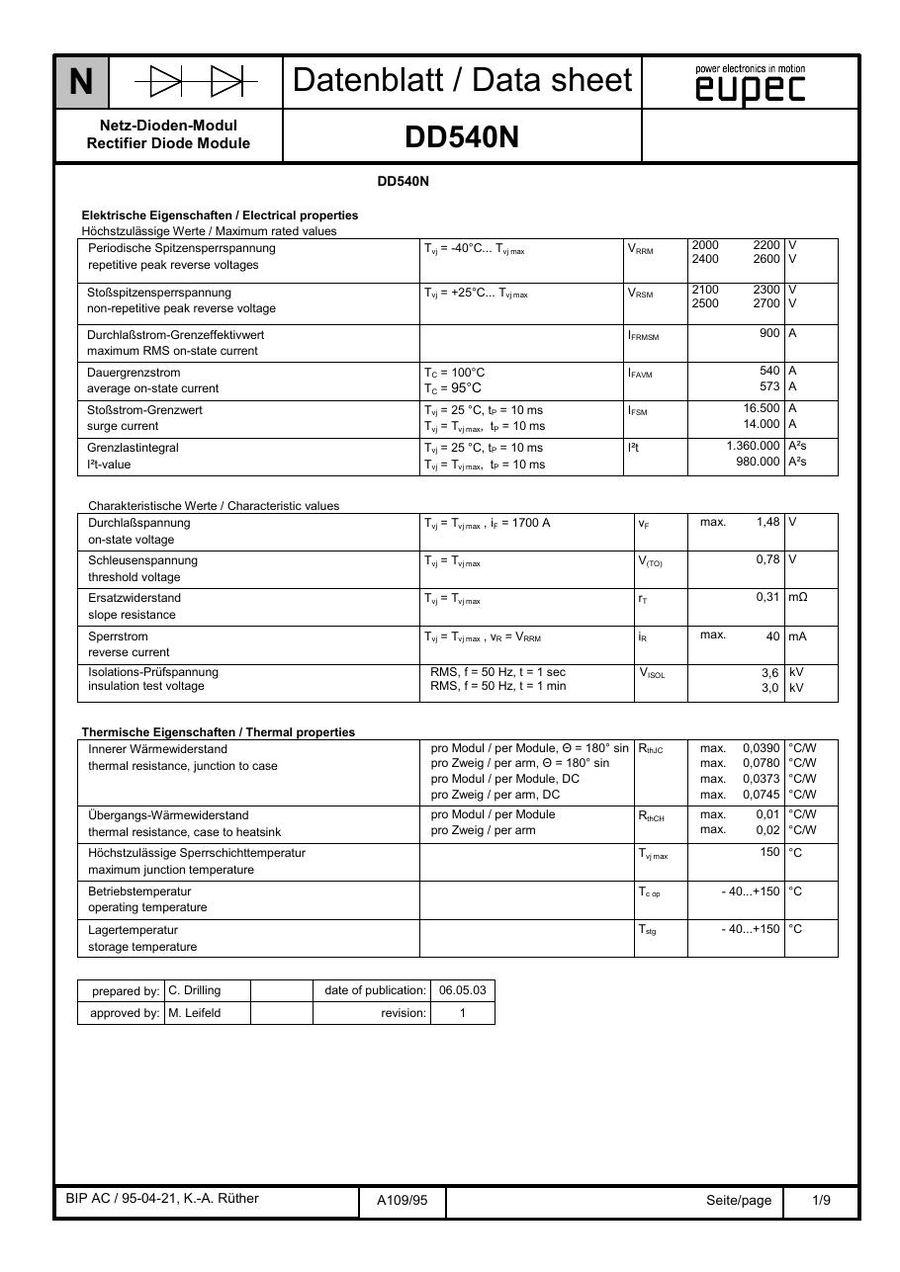

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for DD540N22K (reply within 24 hours)
