DD540N22KHPSA2 Infineon - Rectifier Bridge

Category: Diode & Rectifier Modules

Specifications: 2200V, 540A

DD540N22KHPSA2 Infineon Rectifier Bridge

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD540N22KHPSA2 Description

DD540N22KHPSA2 is the Infineon ordering code of the DD540N22K, a 2200 V / 540 A dual rectifier diode module (PowerBLOCK, 60 mm). USComponent supplies DD540N22KHPSA2 - request a quote and we reply within 24 hours.

Summary of Features

DD540N22KHPSA2 (DD540N22K) is a 2200 V / 540 A dual rectifier diode module from Infineon.

  • VRRM 2200 V, IFAVM 540 A (Tc = 100 °C), IFSM 16500 A
  • Pressure contact technology for high reliability
  • Electrically insulated base plate, industrial standard package
  • Applications: rectifiers for drives, UPS, battery chargers

Target Applications

Infineon DD540N22KHPSA2 finds applications in various industries and systems where high power switching is required.

Key Specifications

DD540N22KHPSA2 is the Infineon ordering code (OPN) of the DD540N22K rectifier diode module - same product, same datasheet.

DD540N22K is a 2200 V / 540 A diode module from Infineon Technologies (eupec). Source: manufacturer datasheet (detailed).

ParameterValue
ManufacturerInfineon Technologies (eupec)
Product typeDiode module (rectifier)
ConfigurationDual diode (two diodes in series)
Repetitive peak reverse voltage (VRRM)2000 / 2200 / 2400 / 2600 V (series); 2200 V for DD540N22
Average forward current (IFAVM)540 A (Tc = 100 °C); 573 A (Tc = 95 °C)
RMS forward current (IFRMSM)900 A
Surge current (IFSM)16500 A (Tvj = 25 °C, tp = 10 ms); 14000 A (Tvj max, tp = 10 ms)
I²t-value (I²t)1360000 A²s (Tvj = 25 °C, tp = 10 ms); 980000 A²s (Tvj max)
On-state voltage (vF)1.48 V max (Tvj max, iF = 1700 A)
Insulation test voltage (VISOL)3.0 kV (RMS, 50 Hz, 1 min); 3.6 kV (1 s)
Max junction temperature (Tvj max)150 °C
Thermal resistance (RthJC)0.0390 °C/W per module, 0.0780 °C/W per arm (180° sin, max)

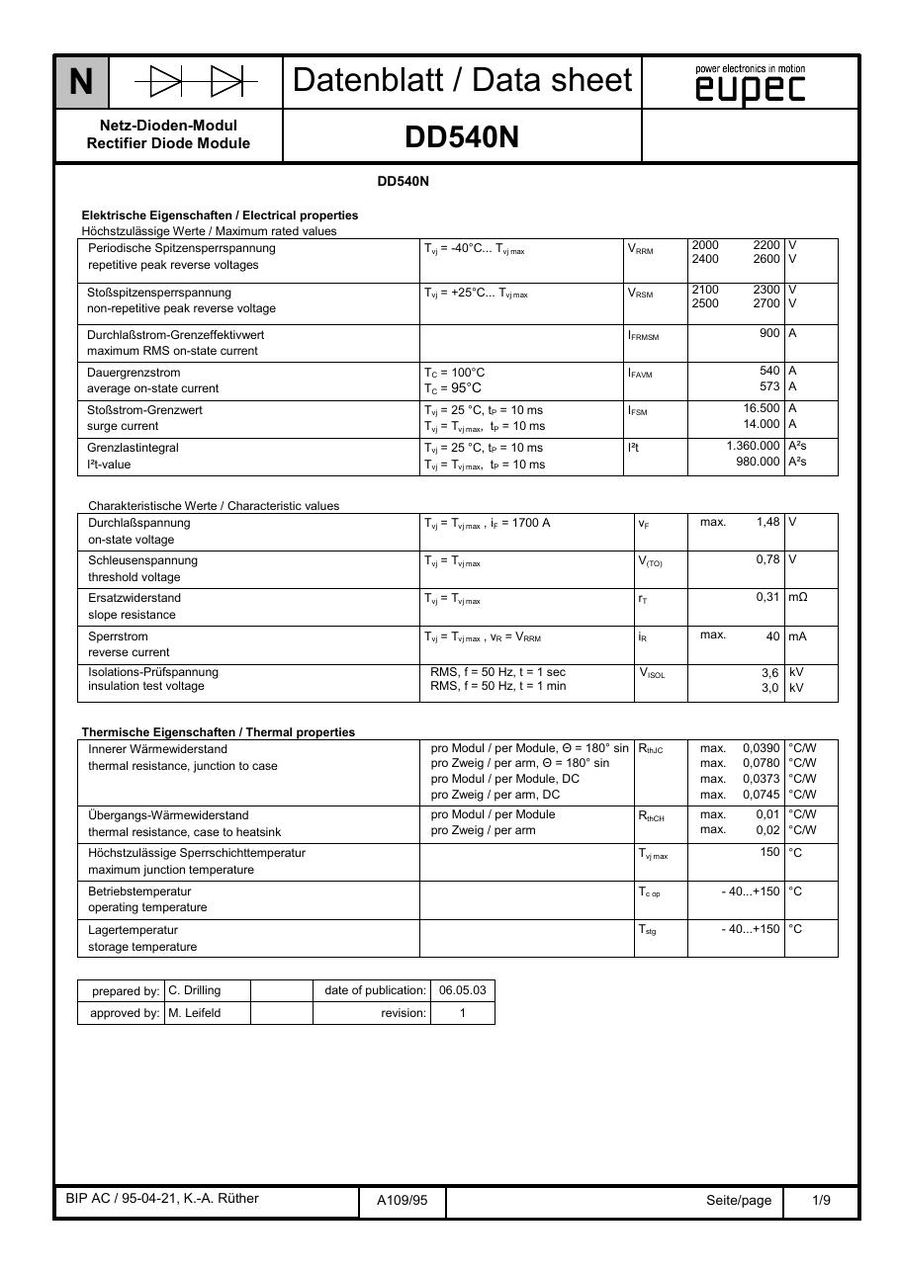

DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DD540N22KHPSA2 (reply within 24 hours)
