DD46S12K Infineon - Power Transistor Module

DD46S12K Description

Rated at 1200 V, the Infineon Technologies (formerly Eupec) DD46S12K is a diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the DD46S12K and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Infineon DD46S12K is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

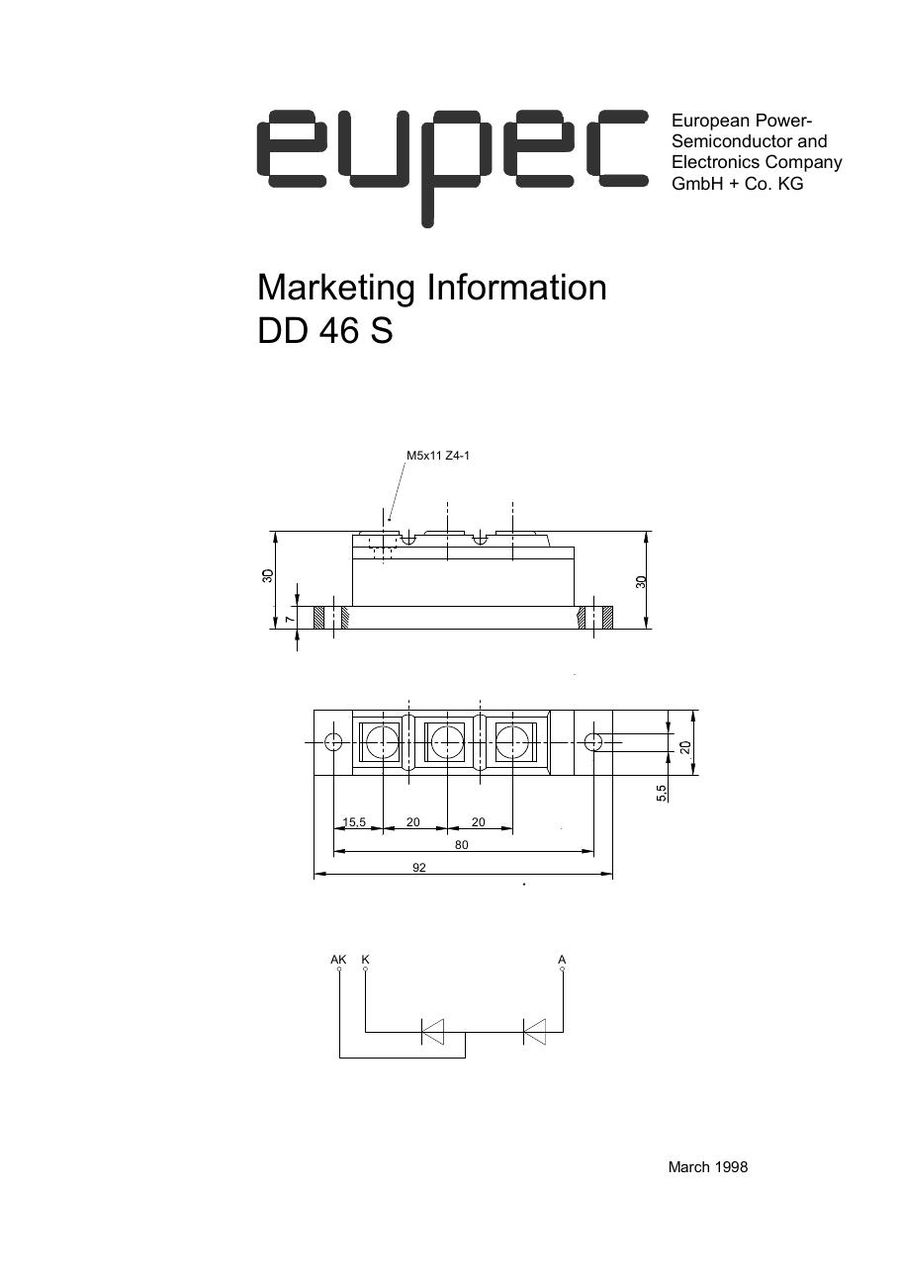

DD46S12K is an eupec (Infineon) PowerBLOCK fast diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

Parameter	Value
Manufacturer	eupec (Infineon Technologies)
Product type	PowerBLOCK fast diode module
Repetitive peak reverse voltage (VRRM)	1200 V (series 800 to 1200 V)
Average forward current (IFAVM), 180° el sin	45 A at Tc = 85 °C
RMS current (IFRMSM)	100 A
Surge current (IFSM), 10 ms, Tvj max	850 A
I²t, 10 ms, Tvj max	3.60 × 10³ A²s
Threshold voltage V(T0)	0.90 V
Slope resistance rT	3.9 mΩ
Thermal resistance RthJC	0.68 °C/W
Thermal resistance RthCK	0.16 °C/W
Max. junction temperature Tvj max	125 °C
Package (outline)	DP20

Technical document (PDF)  |  Request a quote for DD46S12K (reply within 24 hours)
