DD106N16KInfineon - Diode Module

DD106N16K Description

DD106N16K is a power module produced by Infineon Technologies. It contains two IGBTs (Insulated Gate Bipolar Transistors) and two diodes connected in a half-bridge configuration. The module is designed for high power switching applications such as motor drives, power supplies, and welding equipment. The DD106N16K module has a maximum voltage rating of 1600V and a maximum current rating of 106A. It is equipped with built-in overcurrent and over-temperature protection features, which ensure safe and reliable operation under various load conditions. The module has a low thermal resistance design, which enables efficient heat dissipation and ensures long-term stability and reliability. Its compact size and low profile make it suitable for applications where space is limited. The DD106N16K module is a high-performance and reliable solution for power switching applications that require efficient and precise control. Its advanced design ensures high switching speed and low switching losses, resulting in high efficiency and reduced power consumption.

Summary of Features

Target Applications

Infineon DD106N16K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Infineon Technologies
Category	Diode Module
Rated voltage	1600 V
Rated current	600 A

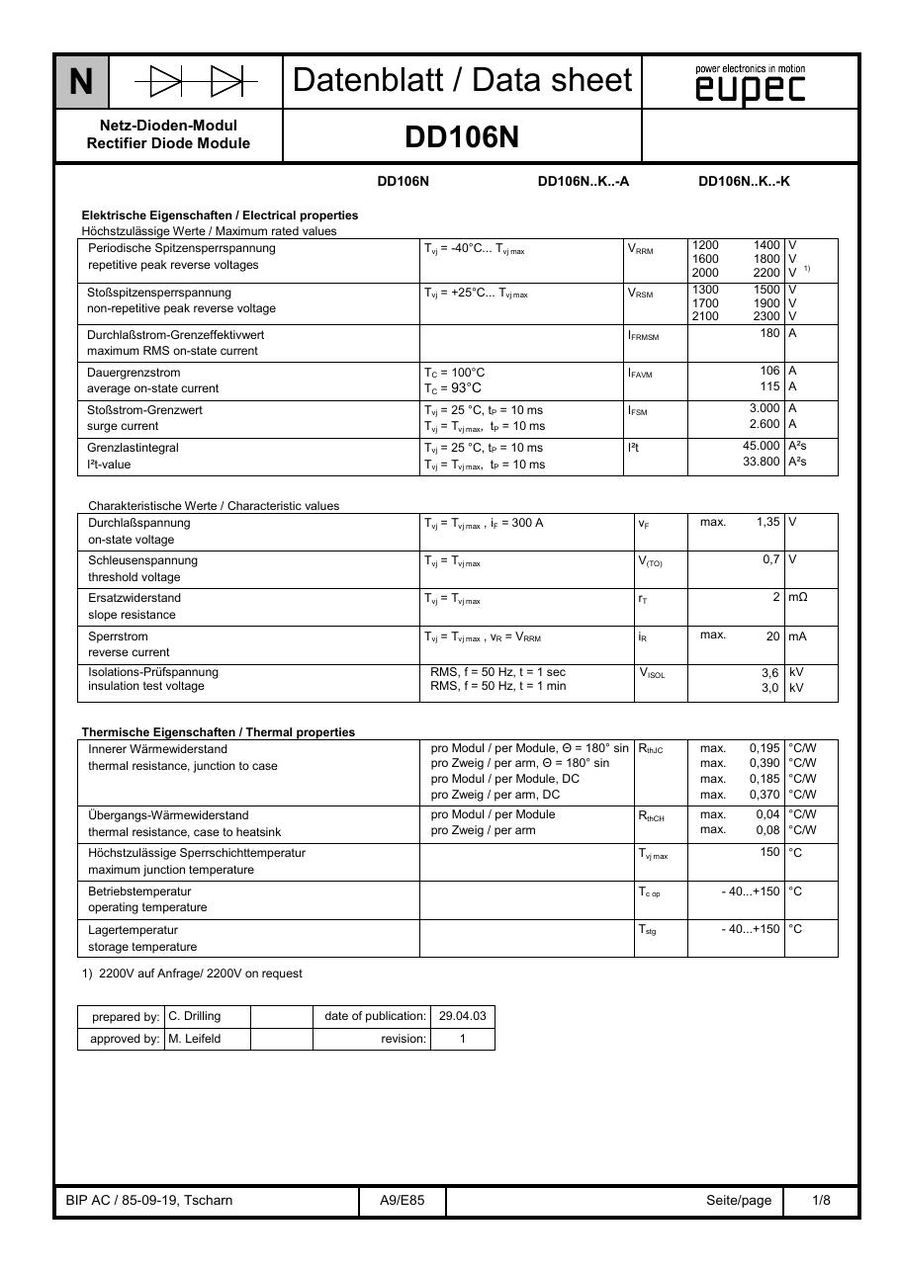

Download DD106N16K Datasheet

DD106N16K PDF Datasheet
