DD171N16K Infineon - DC-DC Converter
Replacement for: Infineon recommends DD171N16K as the replacement for DD171N12K, DD171N14K. We also supply the original parts.
DD171N16K Description
DD171N16K is a rectifier diode module, dual diode (DD171N) from Infineon (eupec), rated 1600V, 171A.
USComponent supplies DD171N16K and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.
Target Applications
Infineon DD171N16K is used for isolated, regulated DC power in telecom and datacom systems, industrial controls, test and measurement, railway and transportation equipment.
Key Specifications
DD171N16K is a rectifier diode module, dual diode (DD171N) from Infineon (eupec), rated 1600V, 171A. Source: manufacturer datasheet.
| Parameter | Value |
|---|---|
| Manufacturer | Infineon (eupec) |
| Repetitive peak reverse voltage VRRM | 1600 V |
| Average on-state current IFAVM | 171 A (TC = 100 °C) |
| Max. RMS current IFRMSM | 270 A |
| Surge current IFSM (10 ms, 25 °C / Tvj max) | 6600 A / 5600 A |
| I²t (10 ms, 25 °C) | 218 000 A²s |
| Threshold voltage V(TO) | 0.75 V |
| Slope resistance rT | 0.8 mΩ |
| Insulation test voltage | 3.0 kV RMS |
| Datasheet | Available on this page (PDF) |

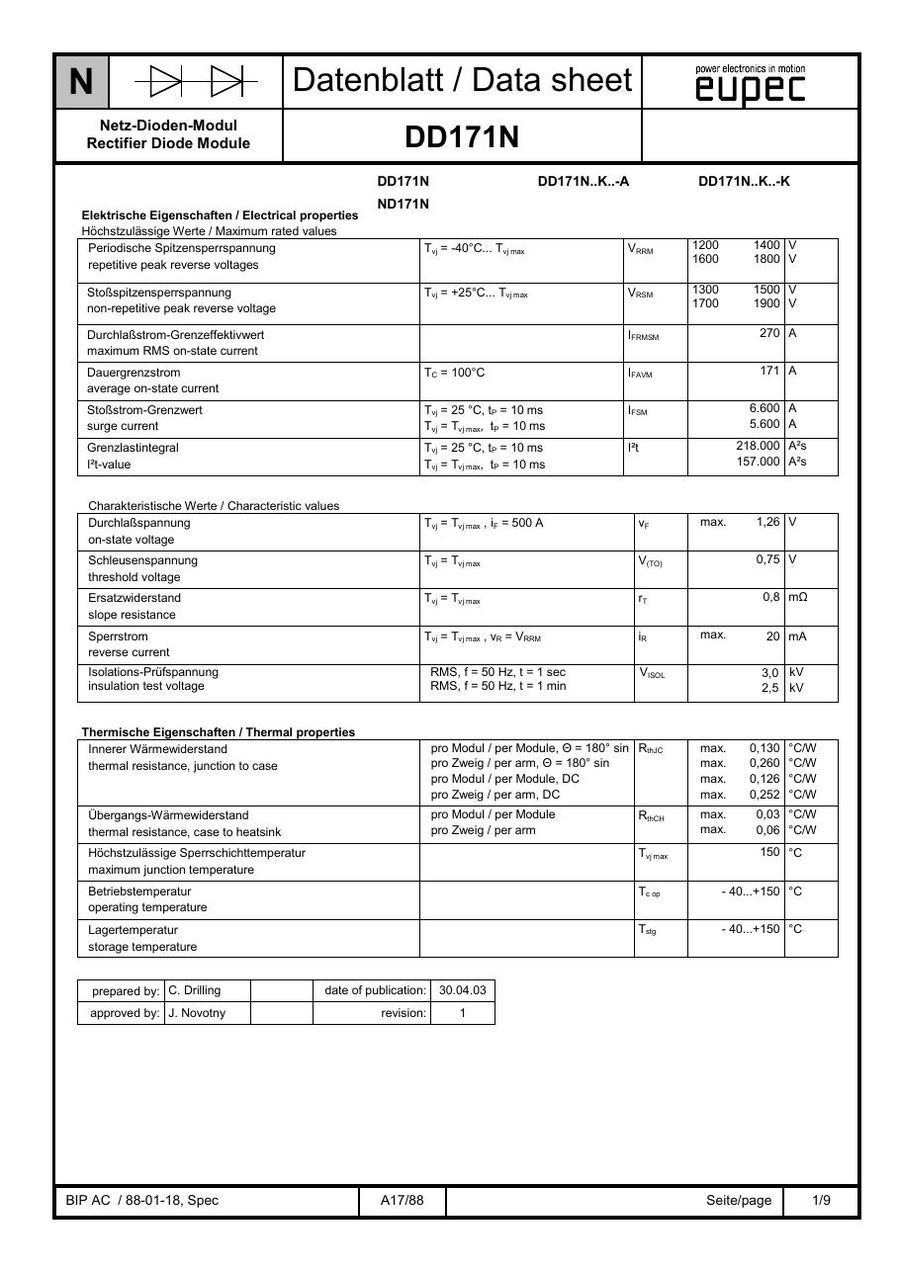

Note: data taken from the Infineon (eupec) datasheet of DD171N series, which covers DD171N16K.
Technical document (PDF) | Request a quote for DD171N16K (reply within 24 hours)
Related Part Numbers
| DD175N16K 1600(V) / 175(A) | DD171N18K 1800(V) / 171(A) | DD151N16K 1600V, 151A | DD171N14K 1400V, 171A |
| DD171N12K 171A/1200V | DD231N16K 1600(V) / 231(A) | DD260N16K 260A/1600V | DD261N16K 1600V, 261A |
| DD171N16K-A 1600V, 171A | DD171N16 1600V, 170A | DD171N16K-K 1600V, 171A | DD171N14K-A 1400V, 171A |
| DD171N18 1800V, 170A | DD171N14 1400V, 170A | DD171N18K-A 1800V, 171A | DD171N12K-A 1200V, 171A |
