DD106N1600K Infineon - Diode Module
DD106N1600K Description
Infineon DD106N1600K is a Schottky rectifier rated at 1600 V and 115 A. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.
USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the DD106N1600K, and please confirm ratings against the datasheet before ordering.
Target Applications
Infineon DD106N1600K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications

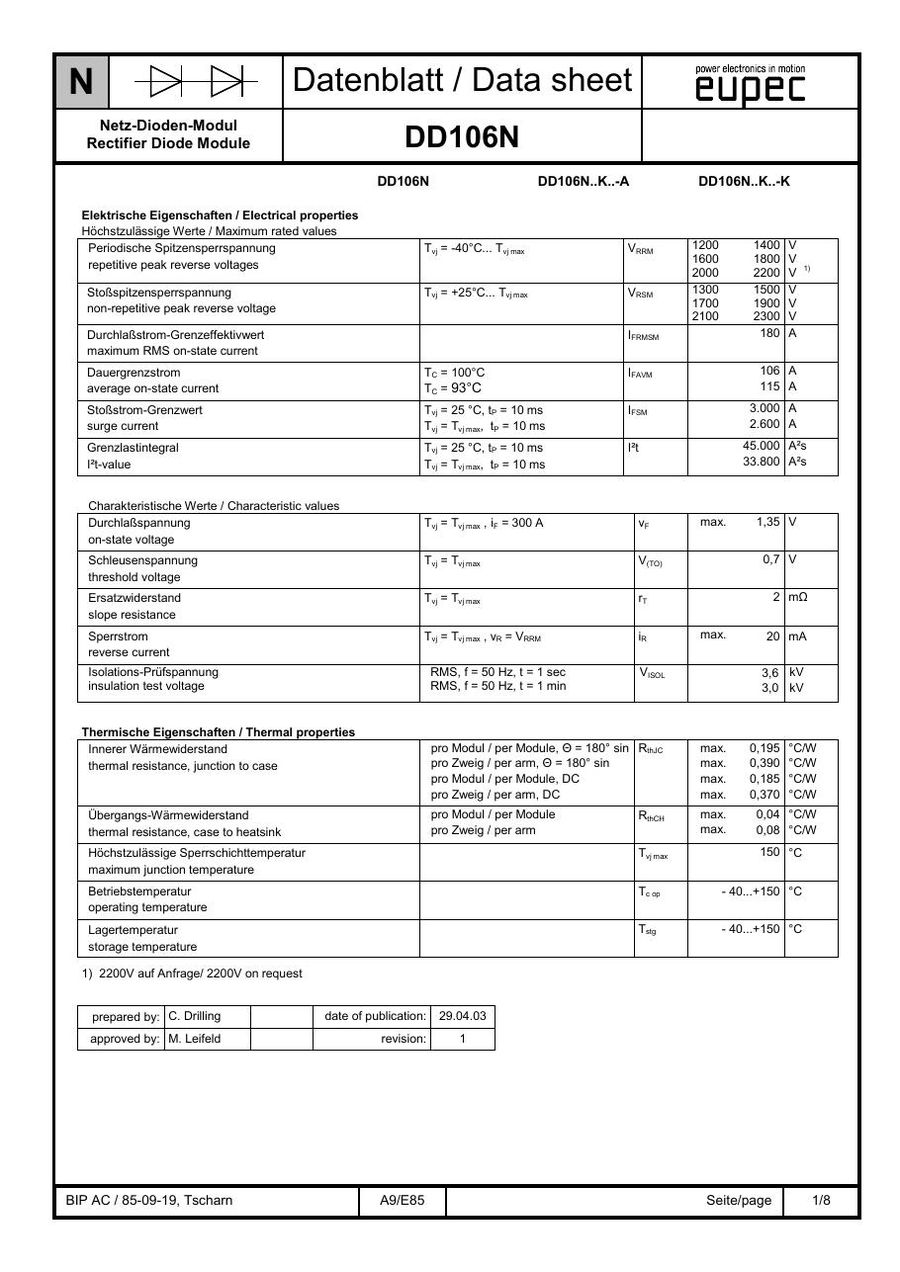

DD106N1600K is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK diode module |
| Repetitive peak reverse voltage (VRRM) | 1600 V (series 1200 to 2200 V) |
| Average forward current (IFAVM), 180° el sin | 106 A at Tc = 100 °C |
| RMS current (IFRMSM) | 180 A |
| Surge current (IFSM), 10 ms, Tvj max | 2600 A |
| I²t, 10 ms, Tvj max | 33.8 × 10³ A²s |
| Threshold voltage V(T0) | 0.70 V |
| Slope resistance rT | 2 mΩ |
| Thermal resistance RthJC | 0.39 °C/W |
| Thermal resistance RthCK | 0.08 °C/W |
| Max. junction temperature Tvj max | 150 °C |
| Package (outline) | DP25 |
Technical document (PDF) | Request a quote for DD106N1600K (reply within 24 hours)
Related Part Numbers
| DD260N1600K 1600(V) / 260(A) | DD105N12K 1200V, 105A | DD105N16K 1600(V) / 105(A) | DD105N14K 1400(V) / 105(A) |
| DD104N18K 1800V, 104A | DD104N16K 1600V, 104A | DD104N08K 800V | DD104N12K 1200V |
| DD106N16K 1600V, 106A | DD106N16 1600V, 106A | DD106N18 1800V, 106A | DD106N14 1400V, 106A |
| DD106N12K 1200V, 106A | DD106N12 1200V, 106A | DD110F-160 1600(V) / 110(A) | DD110F120 |
