DD106N12K Infineon - Diode Module
DD106N12K Description
The DD106N12K from Infineon Technologies is a diode module. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.
Need the DD106N12K? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.
Target Applications
Infineon DD106N12K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications
DD106N12K is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK diode module |
| Repetitive peak reverse voltage (VRRM) | 1200 V (series 1200 to 2200 V) |
| Average forward current (IFAVM), 180° el sin | 106 A at Tc = 100 °C |
| RMS current (IFRMSM) | 180 A |
| Surge current (IFSM), 10 ms, Tvj max | 2600 A |
| I²t, 10 ms, Tvj max | 33.8 × 10³ A²s |
| Threshold voltage V(T0) | 0.70 V |
| Slope resistance rT | 2 mΩ |
| Thermal resistance RthJC | 0.39 °C/W |
| Thermal resistance RthCK | 0.08 °C/W |
| Max. junction temperature Tvj max | 150 °C |
| Package (outline) | DP25 |

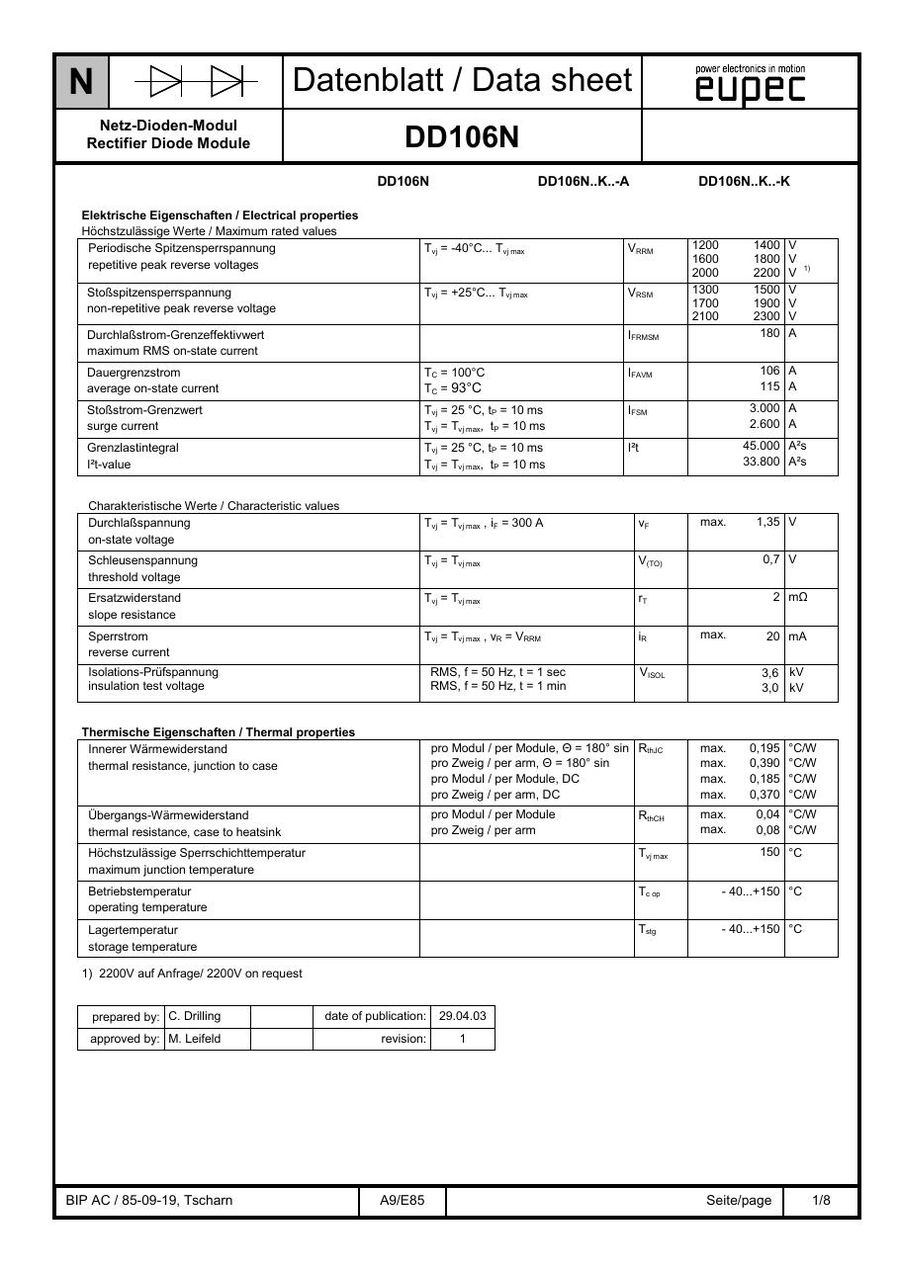

Technical document (PDF) | Request a quote for DD106N12K (reply within 24 hours)
Related Part Numbers
| DD105N12K 1200V, 105A | DD104N12K 1200V | DD89N12K 1200(V) / 140(A) | DD106N16K 1600V, 106A |
| DD76N12K 1200(V) / 76(A) | DD151N12K 1200V, 151A | DD171N12K 171A/1200V | DD175N12K 1200(V) / 175(A) |
| DD106N14 1400V, 106A | DD106N12 1200V, 106A | DD106N16 1600V, 106A | DD106N1600K 1600V, 106A |
| DD106N18 1800V, 106A | DD105N16K 1600(V) / 105(A) | DD105N14K 1400(V) / 105(A) | DD104N18K 1800V, 104A |
