2MBI200NB-120 Fuji Electric - IGBT Module

Other versions: 2MBI200NB-120-01

Category: IGBT Modules

Specifications: 1200V, 200A

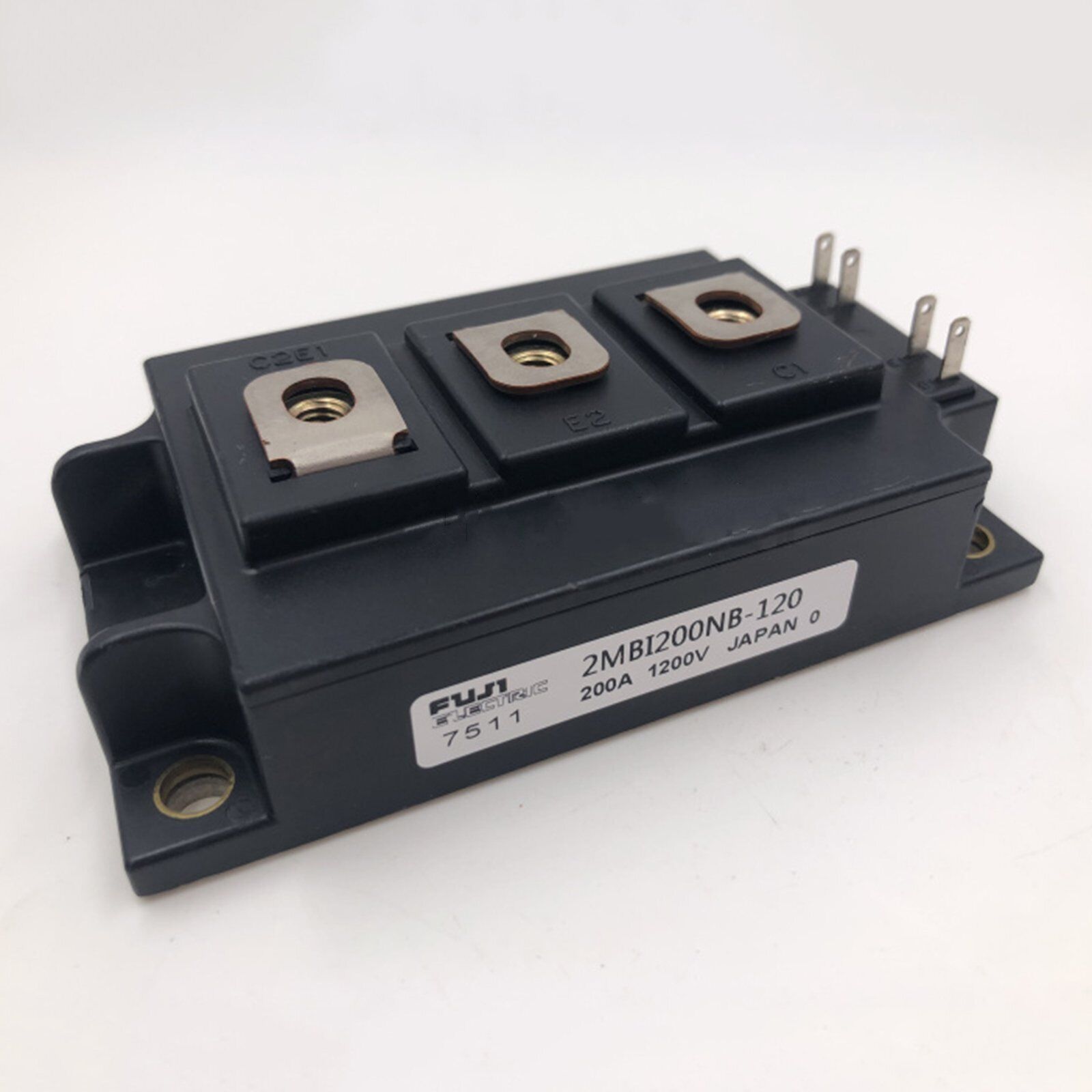

2MBI200NB-120, FUJI, IGBT Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

2MBI200NB-120 Description

2MBI200NB-120 is a 1200 V, 200 A IGBT module made by Fuji Electric. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

Request a quote for the 2MBI200NB-120 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

2MBI200NB-120 is a 1200 V, 200 A IGBT module from Fuji Electric, 2 in one package (half bridge).

  • High speed switching
  • Voltage drive
  • Low inductance module structure

Target Applications

Fuji Electric 2MBI200NB-120 is used for Inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines such as welding machines.

Key Specifications

2MBI200NB-120 is a 1200 V, 200 A IGBT module from Fuji Electric, 2 in one package (half bridge). Source: Fuji Electric datasheet 2MBI200NB-120.

ParameterValue
ManufacturerFuji Electric
Product typeIGBT module
Configuration2 in one package (half bridge)
Collector-emitter voltage VCES1200 V
Gate-emitter voltage VGES±20 V
Collector current IC200 A continuous; -IC 200 A
Collector current ICp (1 ms)400 A; -IC pulse 400 A
Collector power dissipation PC1500 W
VCE(sat)3.3 V max (IC = 200 A, VGE = 15 V)
Gate-emitter threshold voltage VGE(th)4.5 - 7.5 V (IC = 200 mA)
Input capacitance Cies32000 pF typ (Coes 11600 pF, Cres 10320 pF)
Switching (typ / max)ton 0.65 / 1.2 µs, tr 0.25 / 0.6 µs, toff 0.85 / 1.5 µs, tf 0.35 / 0.5 µs (VCC = 600 V, IC = 200 A, RG = 4.7 Ω)
Diode forward voltage VF3.0 V max (IF = 200 A)
Diode reverse recovery time trr0.35 µs max
Thermal resistance Rth(j-c) max0.085 °C/W IGBT; 0.18 °C/W diode; Rth(c-f) 0.025 °C/W
Junction / storage temperature+150 °C / -40 to +125 °C
Isolation voltage VisoAC 2500 V (1 min)
Screw torqueMounting 3.5 N·m max (M5 / M6, recommended 2.5 - 3.5); terminals M6 4.5 N·m max (recommended 3.5 - 4.5)
DatasheetAvailable on this page (PDF)

2MBI200NB-120 Video

2MBI200NB-120 video

Technical document (PDF)  |  Request a quote for 2MBI200NB-120 (reply within 24 hours)
