2MBI300NB-060 Fuji Electric - IGBT power module

2MBI300NB-060 Description

Rated at 600 V and 300 A, the Fuji Electric 2MBI300NB-060 is an IGBT module. It is built with two switches in a half-bridge (2-in-1) arrangement. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

Looking for a replacement 2MBI300NB-060? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric 2MBI300NB-060 is used for Inverter for Motor drive AC and DC Servo drive amplifier Uninterruptible power supply Industrial machines, such as Welding machines.

Key Specifications

2MBI300NB-060 is a 600 V, 300 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	300 A

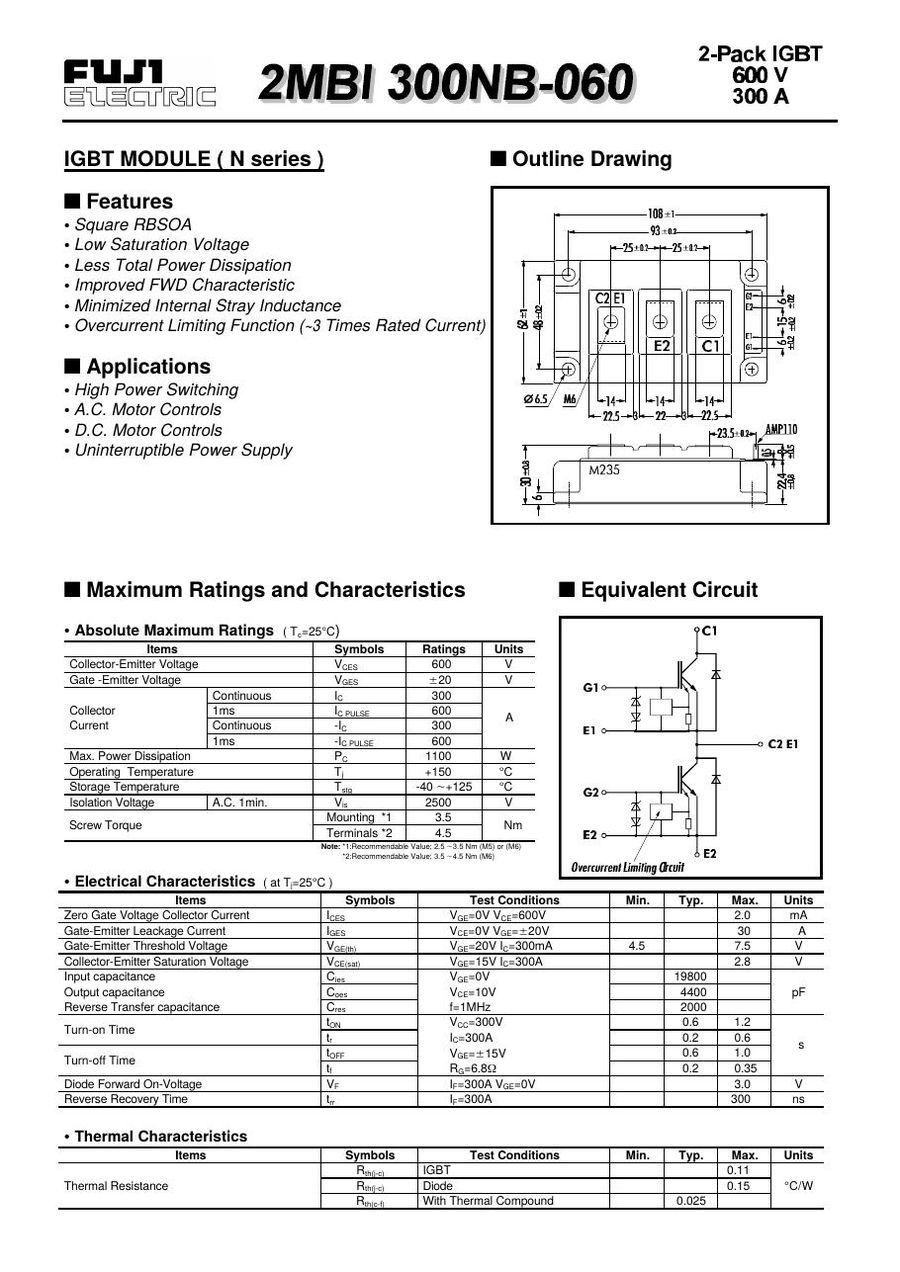

Datasheet	Available on this page (PDF)
