2MBI200N-060-10 Fuji Electric - IGBT Module

2MBI200N-060-10 Description

2MBI200N-060-10 is a 600 V / 200 A dual IGBT module (N series) from Fuji Electric. Typical applications: high power switching, AC motor controls, DC motor controls and UPS.

USComponent supplies 2MBI200N-060-10 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 2MBI200N-060-10 is used for High power switching, AC motor controls, DC motor controls and UPS.

Key Specifications

2MBI200N-060-10 is a 600 V / 200 A dual IGBT module (N series) from Fuji Electric. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Fuji Electric
Configuration	Dual (2-in-1) IGBT with free-wheeling diodes
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	200 A, 400 A 1 ms
Max. power dissipation (PC)	780 W
VCE(sat)	2.8 V max. at 200 A
Switching times (max.)	ton 1.2 µs, tr 0.6 µs, toff 1.0 µs, tf 0.35 µs
Diode forward voltage (VF)	3.0 V max. at 200 A
Reverse recovery time (trr)	300 ns
Thermal resistance Rth(j-c)	0.16 °C/W IGBT, 0.35 °C/W diode
Isolation voltage	2500 V AC, 1 min
Datasheet	Available on this page (PDF)

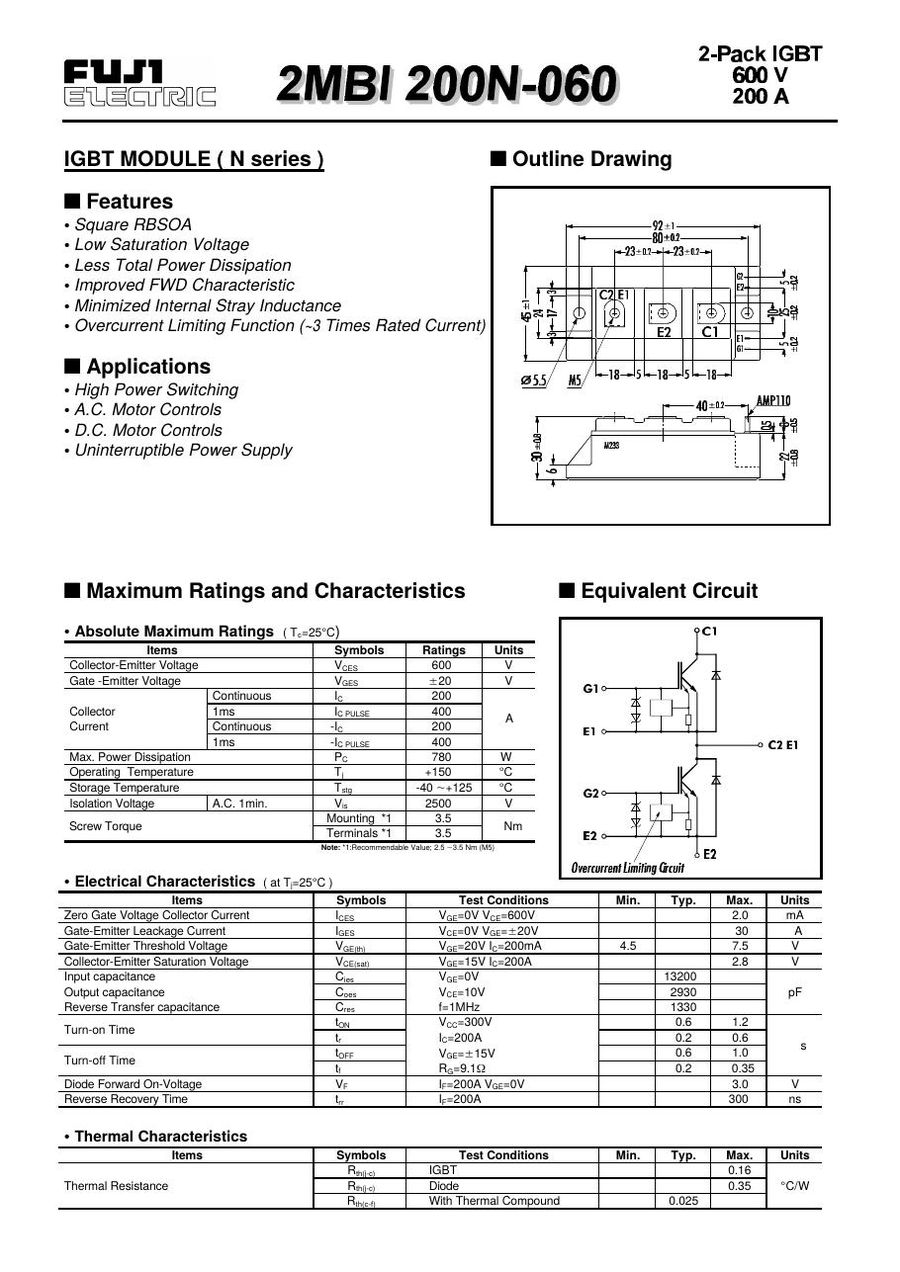

Note: data taken from the Fuji Electric datasheet of 2MBI200N-060. 2MBI200N-060-10 is the same part with a suffix that does not change the electrical ratings.
