2MBI150SC-120Fuji Electric - IGBT Module

2MBI150SC-120 Description

The Fuji Electric 2MBI150SC-120 is an IGBT module rated at 1200 V and 150 A, available from USComponent. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2MBI150SC-120.

Summary of Features

Target Applications

Fuji Electric 2MBI150SC-120 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

2MBI150SC-120 is a 1,200 V, 150 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

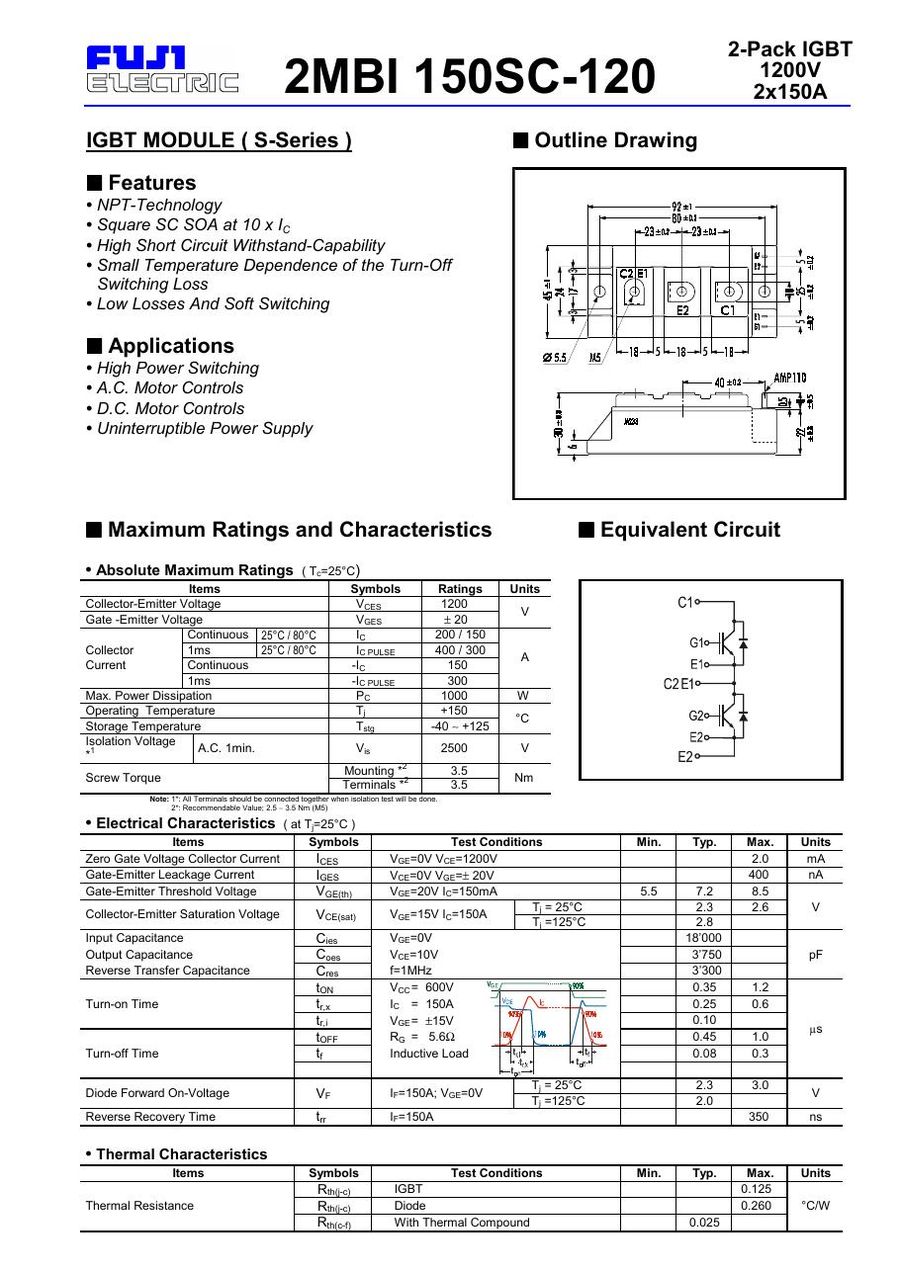

Download 2MBI150SC-120 Datasheet

2MBI150SC-120 PDF Datasheet
