2MBI150NT-120A Fuji Electric - IGBT Module

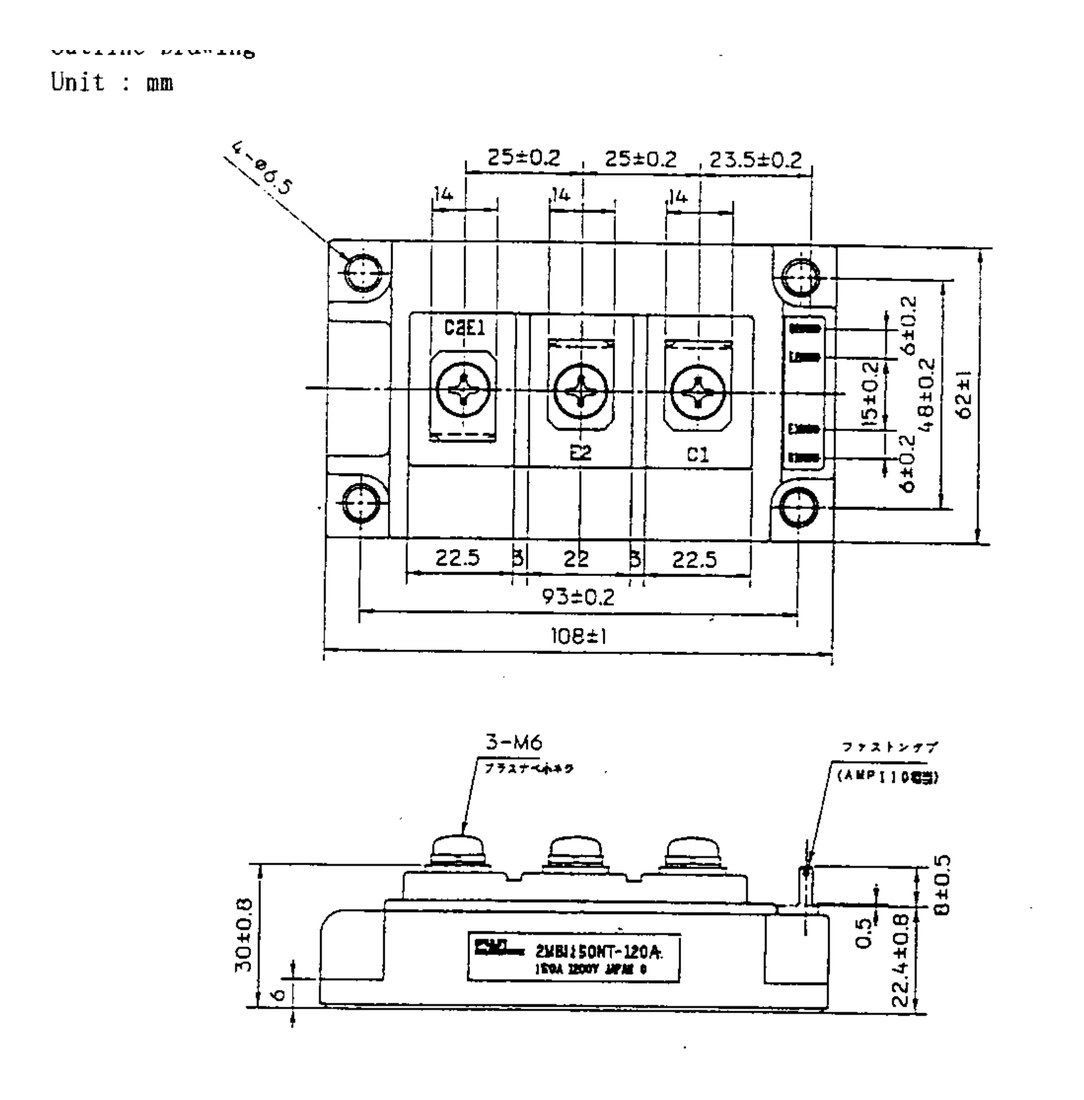

2MBI150NT-120A Description

2MBI150NT-120A is an IGBT module, 2 in one, with over current limiting circuit (NLU) from Fuji Electric, rated 1200V, 150A.

USComponent supplies 2MBI150NT-120A and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 2MBI150NT-120A is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI150NT-120A is an IGBT module, 2 in one, with over current limiting circuit (NLU) from Fuji Electric, rated 1200V, 150A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Fuji Electric
Collector-emitter voltage VCES	1200 V
Collector current IC (continuous)	150 A
IC pulse (1 ms)	300 A
VCE(sat) max. (IC = 150 A)	3.5 V
Max. power dissipation	1210 W
Short-circuit withstand capability	10 µs min. (VCC = 800 V)
Operating temperature Tj	+150 °C
Isolation voltage	AC 2500 V, 1 min
Datasheet	Available on this page (PDF)

Note: data taken from the Fuji Electric datasheet of Fuji Electric specification sheet MS5F4143, which covers 2MBI150NT-120A.
