2MBI150PC-140 Fuji Electric - IGBT Module

2MBI150PC-140 Description

The Fuji Electric 2MBI150PC-140 is an IGBT module, rated for 1400 V and 150 A. Inside, it has two switches in a half-bridge (2-in-1) arrangement. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

We help engineers and repair technicians find parts like the 2MBI150PC-140, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Fuji Electric 2MBI150PC-140 is used for High power switching, AC motor controls, DC motor controls, uninterruptible power supply.

Key Specifications

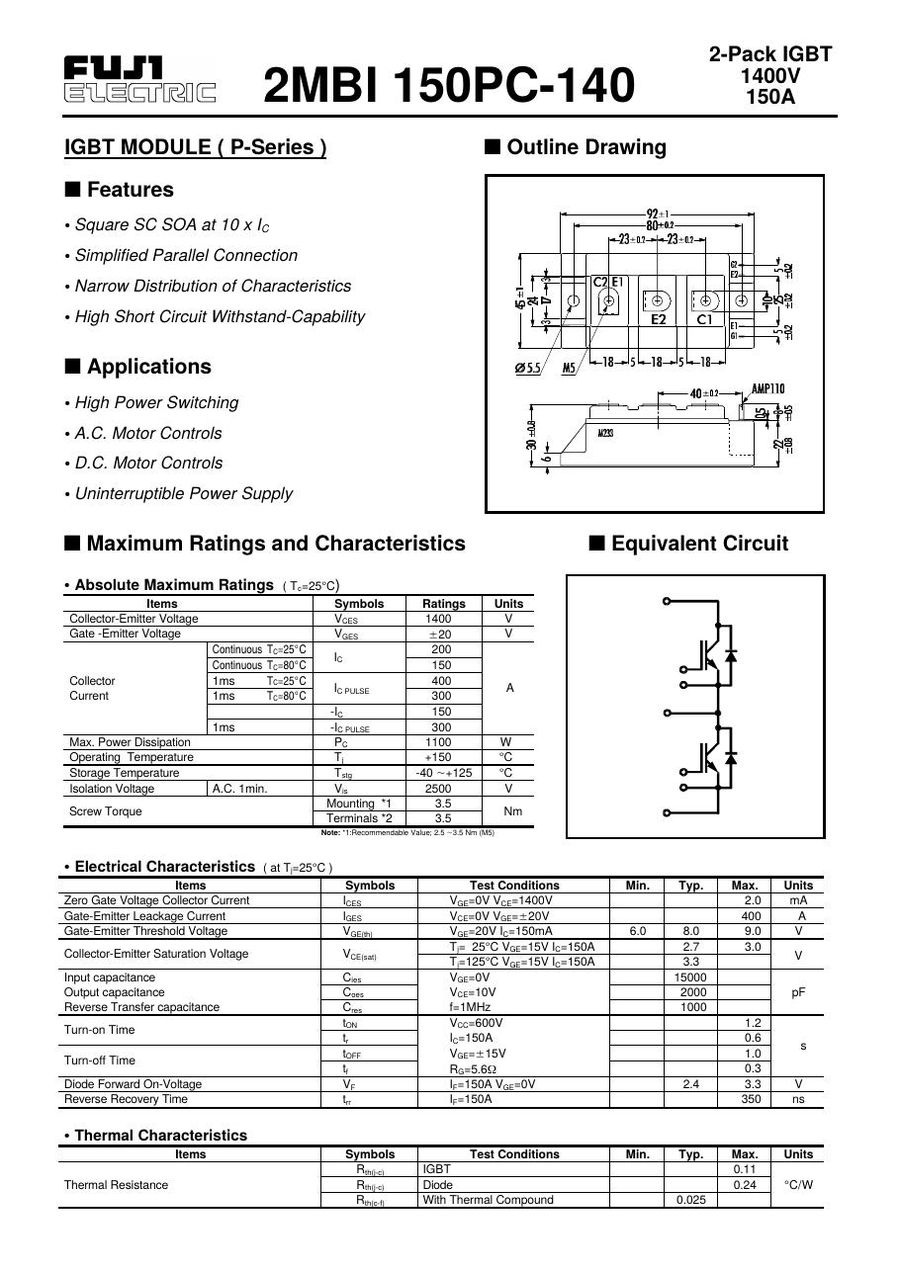

2MBI150PC-140 is a 1400 V, 150 A IGBT module from Fuji Electric, 2 in one package (half bridge). Source: Fuji Electric datasheet 2MBI 150PC-140 (2-Pack IGBT).

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Configuration	2 in one package (half bridge)
Collector-emitter voltage VCES	1400 V
Gate-emitter voltage VGES	±20 V
Collector current IC	200 A (Tc = 25 °C); 150 A (Tc = 80 °C); -IC 150 A
Collector current ICp (1 ms)	400 A (25 °C); 300 A (80 °C); -IC pulse 300 A
Collector power dissipation PC	1100 W
VCE(sat)	2.7 V typ, 3.0 V max (IC = 150 A, VGE = 15 V, 25 °C); 3.3 V typ at 125 °C
Gate-emitter threshold voltage VGE(th)	6.0 / 8.0 / 9.0 V (IC = 150 mA)
Input capacitance Cies	15000 pF typ (Coes 2000 pF, Cres 1000 pF)
Switching (typ / max)	tON 1.2 µs, tr 0.6 µs, tOFF 1.0 µs, tf 0.3 µs max (VCC = 600 V, IC = 150 A, RG = 5.6 Ω)
Diode forward voltage VF	2.4 V typ, 3.3 V max (IF = 150 A)
Diode reverse recovery time trr	350 ns
Thermal resistance Rth(j-c) max	0.11 °C/W IGBT; 0.24 °C/W diode; Rth(c-f) 0.025 °C/W
Junction / storage temperature	+150 °C / -40 to +125 °C
Isolation voltage Viso	AC 2500 V (1 min)
Screw torque	Mounting / terminals M5: 3.5 Nm max (recommended 2.5 - 3.5)
Datasheet	Available on this page (PDF)
