2MBI150L-120Fuji Electric - IGBT Module

2MBI150L-120 Description

The Fuji Electric 2MBI150L-120 is an IGBT module rated at 1200 V and 150 A. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2MBI150L-120.

Summary of Features

Target Applications

Fuji Electric 2MBI150L-120 is used for Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines such as Welding machines.

Key Specifications

2MBI150L-120 is a 1,200 V, 150 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

Download 2MBI150L-120 Datasheet

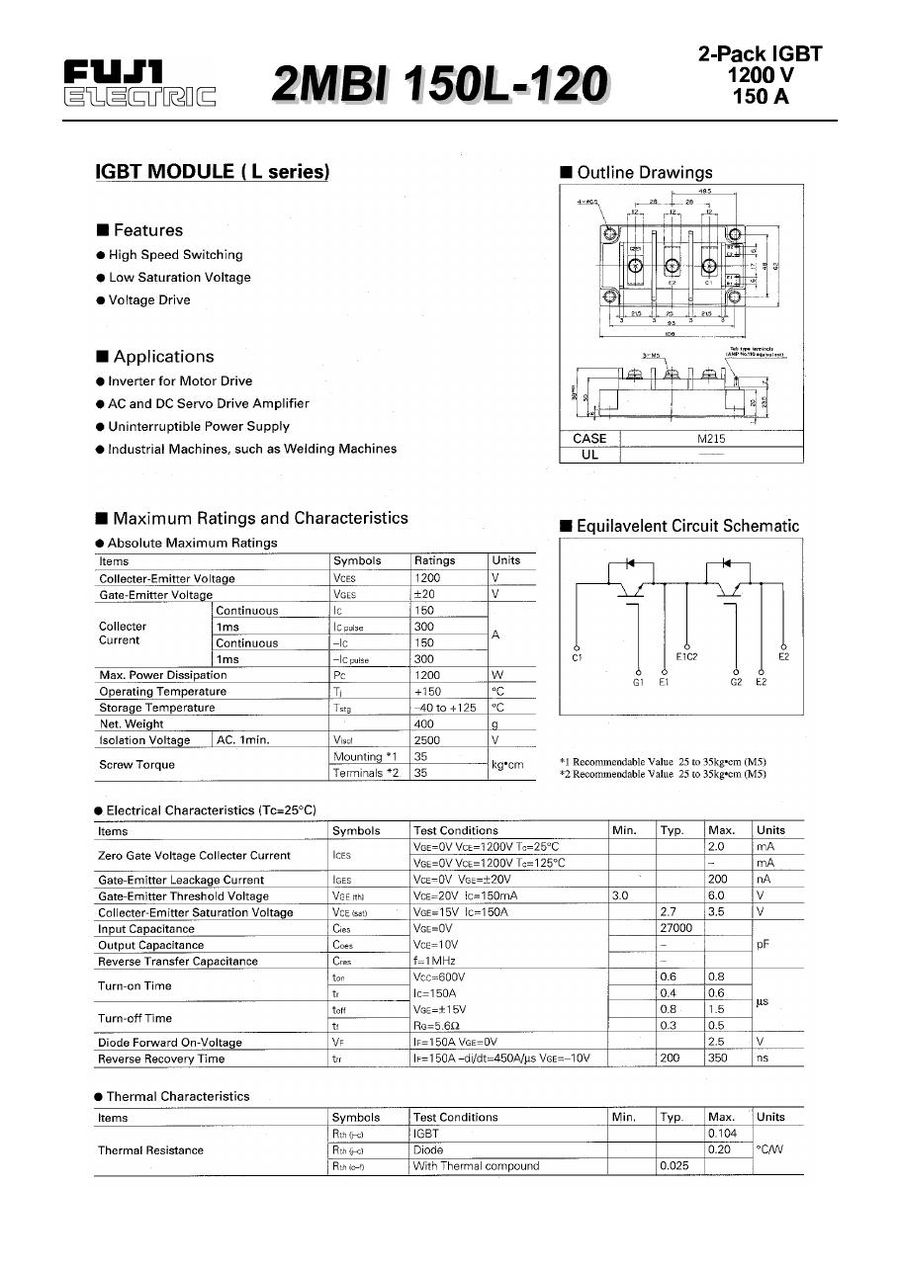

2MBI150L-120 PDF Datasheet
