2MBI150NC-060-10 Fuji Electric - IGBT power module

2MBI150NC-060-10 Description

The 2MBI150NC-060-10 from Fuji Electric is an IGBT module with a 600 V / 150 A rating. The module contains two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

Need the 2MBI150NC-060-10? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 2MBI150NC-060-10 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI150NC-060-10 is a 600 V, 150 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	150 A

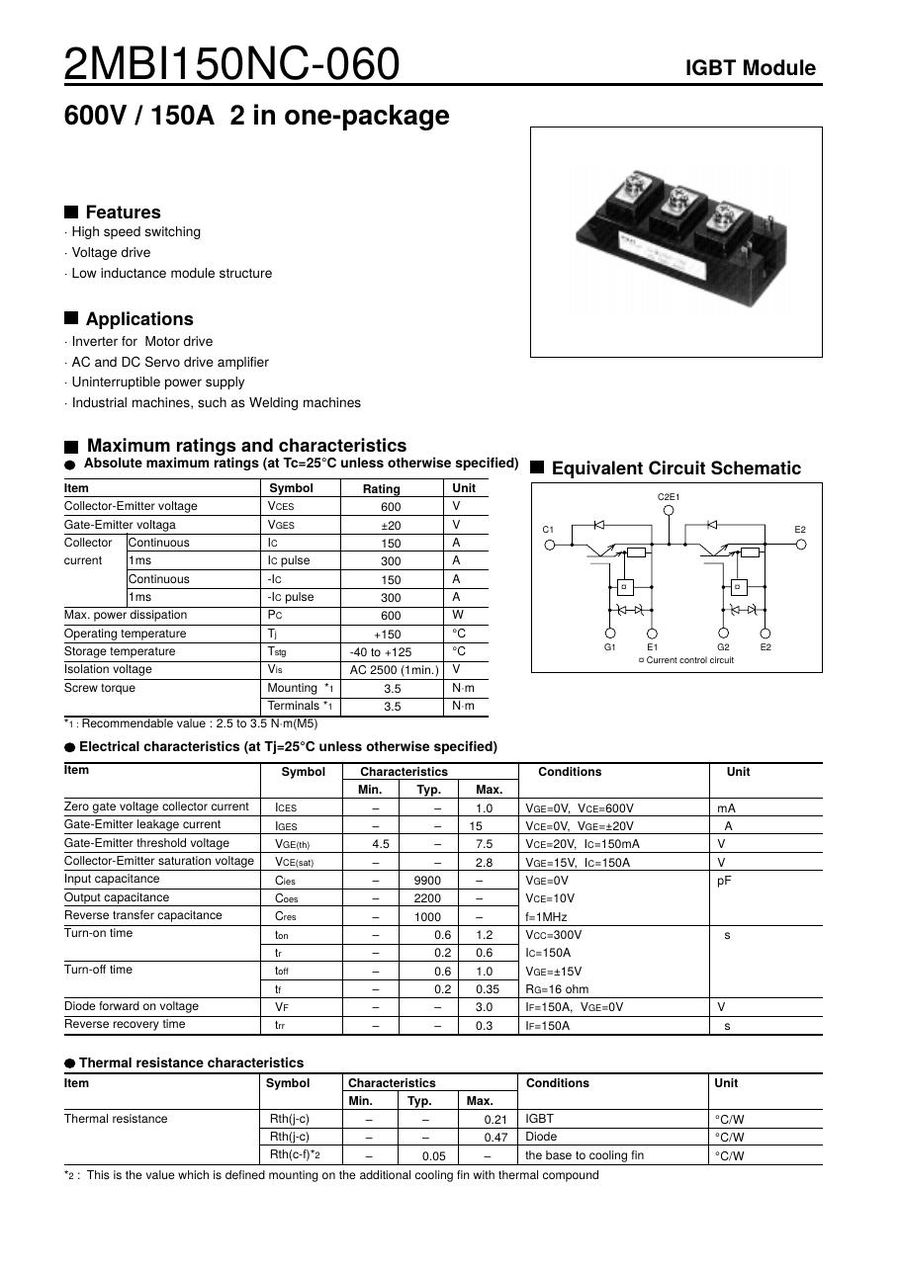

Datasheet	Available on this page (PDF)
