2MBI150F-060 Fuji Electric - IGBT power module

2MBI150F-060 Description

Rated at 600 V and 150 A, the Fuji Electric 2MBI150F-060 is an IGBT module. The module contains two switches in a half-bridge (2-in-1) arrangement. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 2MBI150F-060, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 2MBI150F-060 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI150F-060 is a 600 V, 150 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	150 A

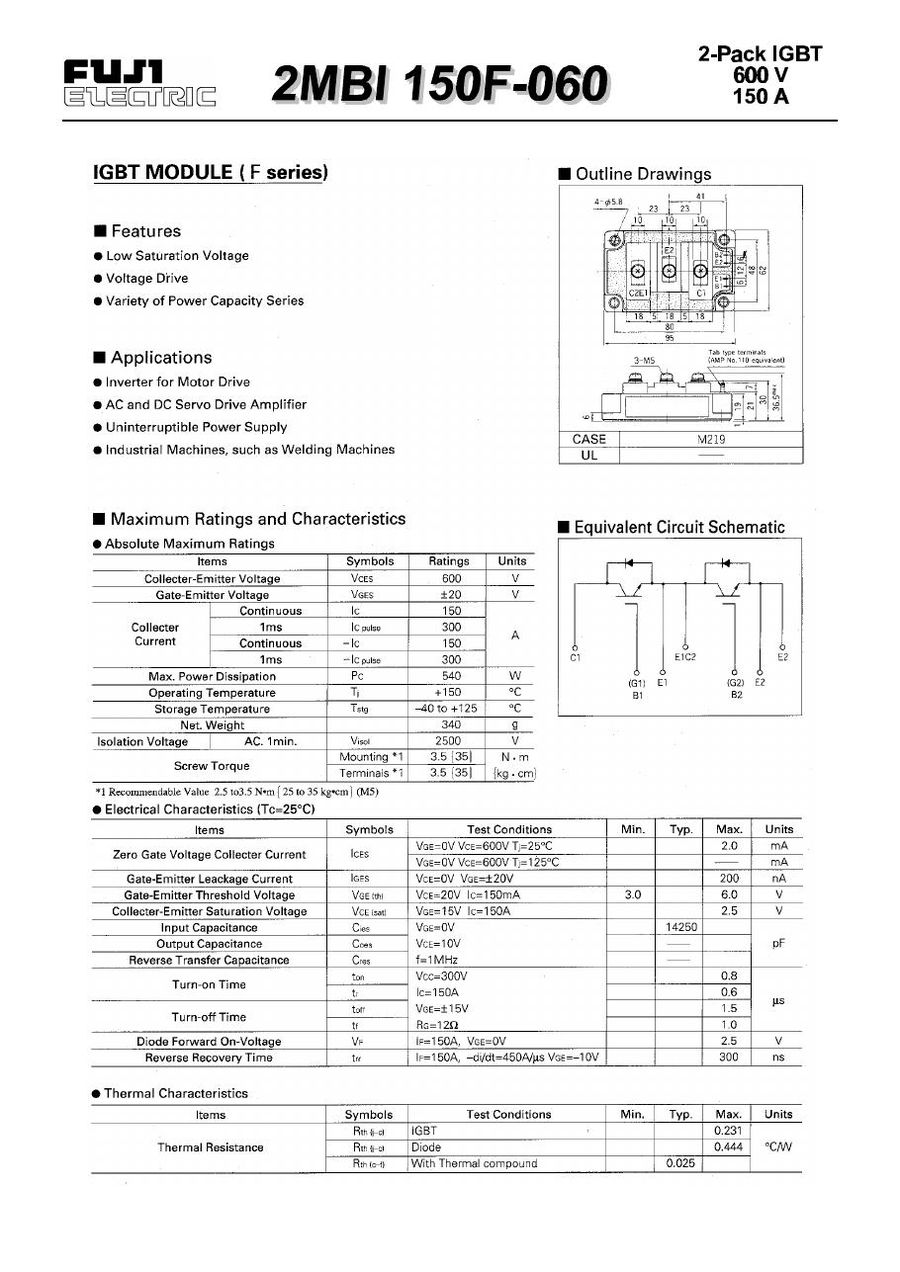

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI150F-060 (reply within 24 hours)
