2MBI100L-120 Description

The 2MBI100L-120 from Fuji Electric is an IGBT module with a 1200 V / 100 A rating. The module contains two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Request a quote for the 2MBI100L-120 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Fuji Electric 2MBI100L-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI100L-120 is a 1,200 V, 100 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	100 A

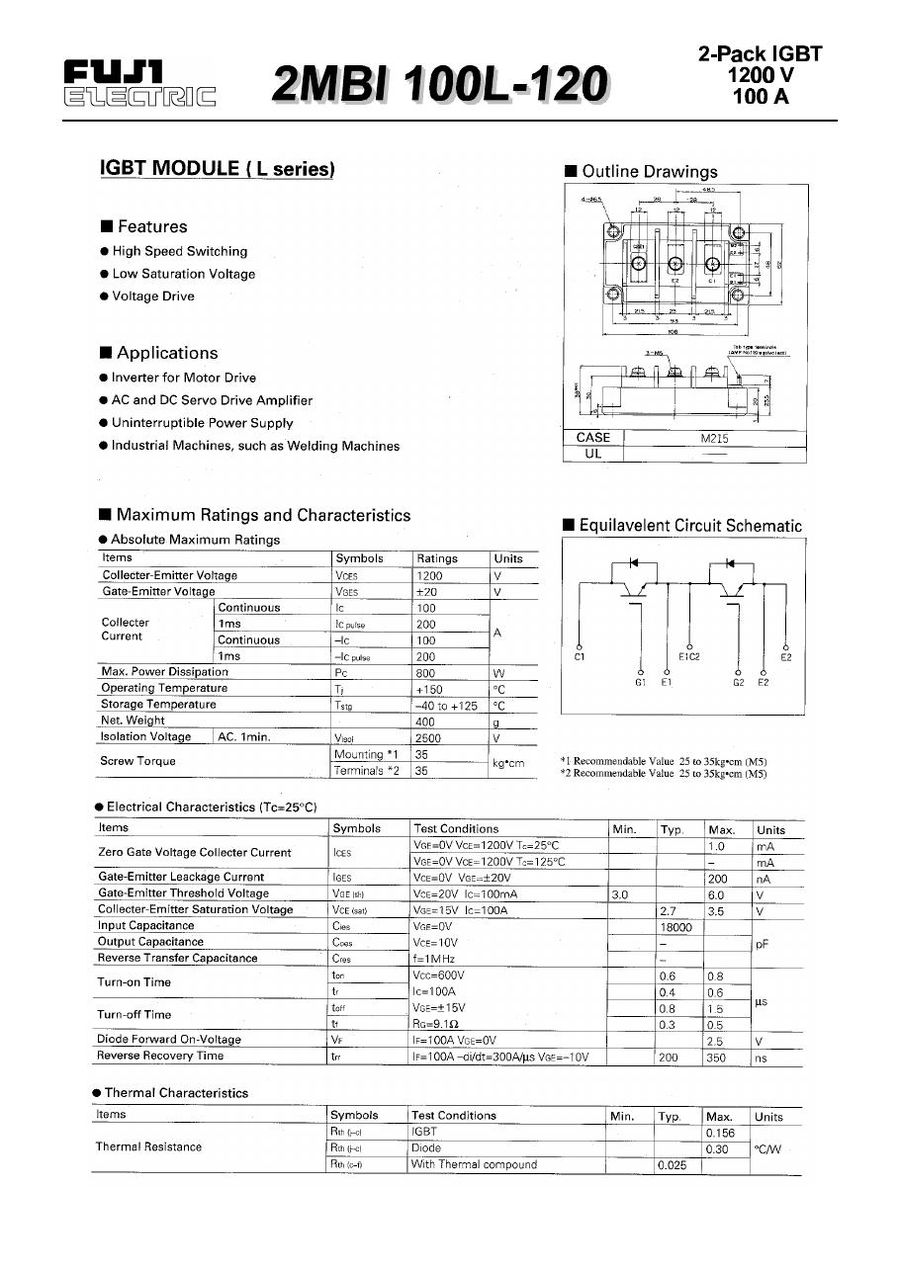

Datasheet	Available on this page (PDF)
