2MBI100L-060Fuji Electric - IGBT Module

2MBI100L-060 Description

The Fuji Electric 2MBI100L-060 is an IGBT module rated at 600 V and 100 A. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2MBI100L-060.

Summary of Features

Target Applications

Fuji Electric 2MBI100L-060 is used for General Purpose Inverter, AC and DC Servo drive amplifier, Uninterruptible power supply and Switching Power Supplies for Welding machine.

Key Specifications

2MBI100L-060 is a 600 V, 100 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	100 A
Datasheet	Available on this page (PDF)

Download 2MBI100L-060 Datasheet

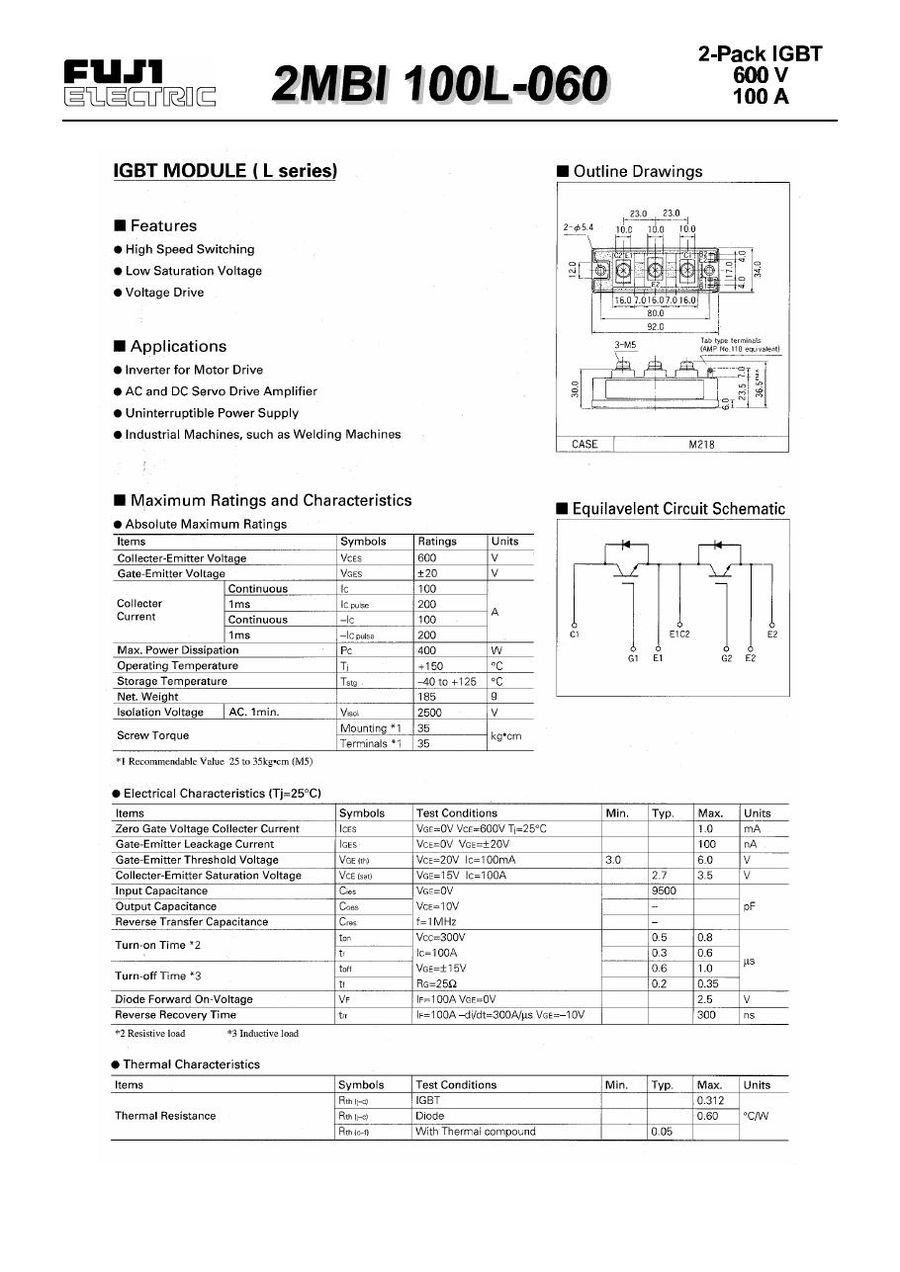

2MBI100L-060 PDF Datasheet
