2DI150D-100 Fuji Electric - Bipolar Transistor Module

2DI150D-100 Description

Fuji Electric makes the 2DI150D-100, a 1000 V, 150 A Darlington transistor module. It is built with two switches in a half-bridge (2-in-1) arrangement. It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 2DI150D-100 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Fuji Electric 2DI150D-100 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

2DI150D-100 is a 1,000 V, 150 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,000 V
Collector current (IC)	150 A

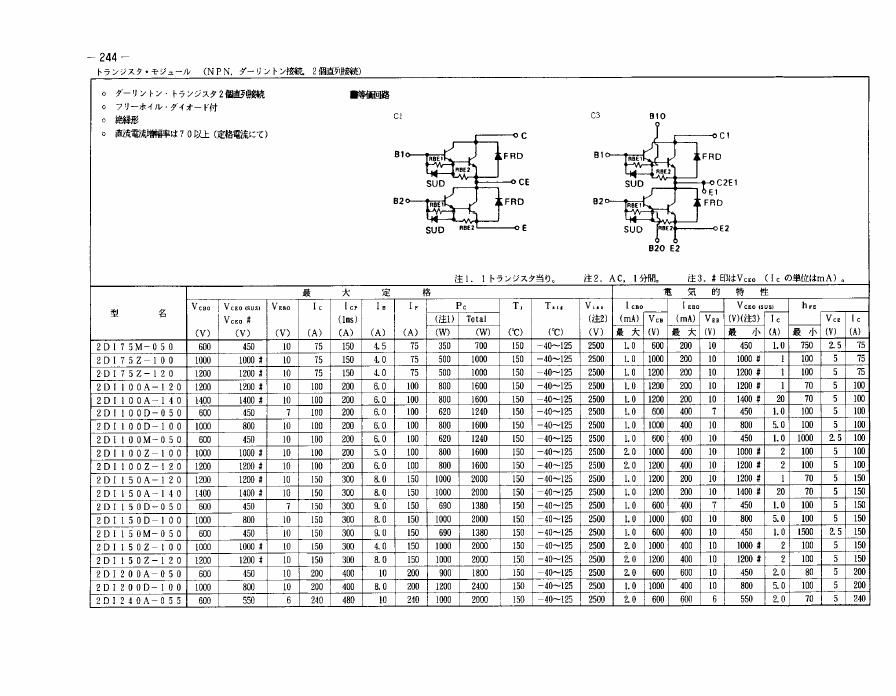

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2DI150D-100 (reply within 24 hours)
