2DI150M-120Fuji Electric - Darlington Module

2DI150M-120 Description

The Fuji Electric 2DI150M-120 is a Darlington transistor module rated at 1200 V and 150 A. This type of device is widely used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI150M-120.

Summary of Features

Target Applications

Fuji Electric 2DI150M-120 is used for General Purpose Inverter????? Uninterruptible Power Supply Servo & Spindle Drive for NC Machine Tools Robotics (Servo Drive for Robots) Switching Power Supplies for Welding Machines.

Key Specifications

2DI150M-120 is a 1,200 V, 150 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

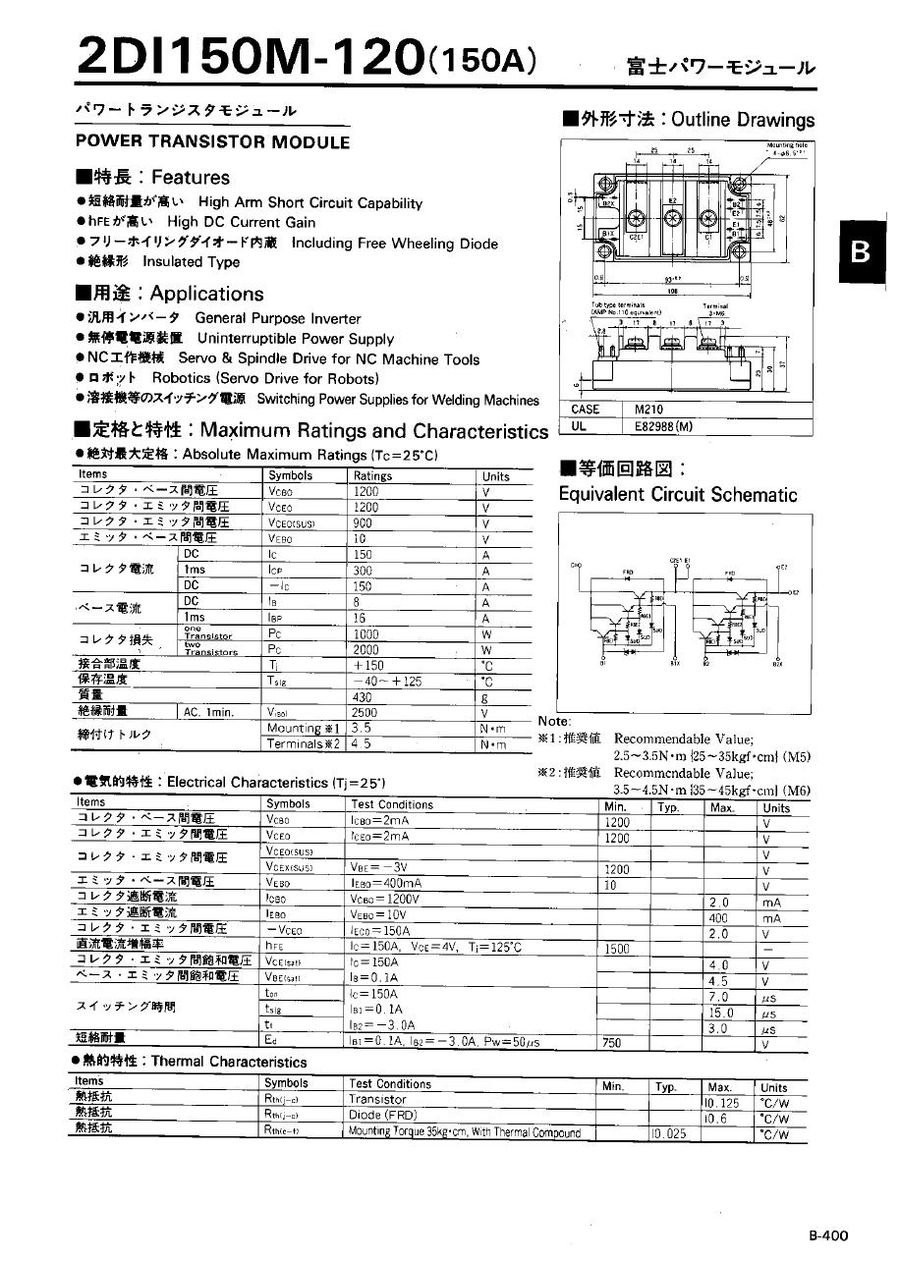

Download 2DI150M-120 Datasheet

2DI150M-120 PDF Datasheet
