2DI150Z-100-EFuji Electric - Darlington Module

2DI150Z-100-E Description

The Fuji Electric 2DI150Z-100-E is a Darlington transistor module rated at 1000 V and 150 A, available from USComponent. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI150Z-100-E.

Summary of Features

Target Applications

Fuji Electric 2DI150Z-100-E is used for high-power traction inverters and choppers, medium-voltage motor drives, static VAR compensators and other high-power converters.

Key Specifications

2DI150Z-100-E is a 1,000 V, 150 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,000 V
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

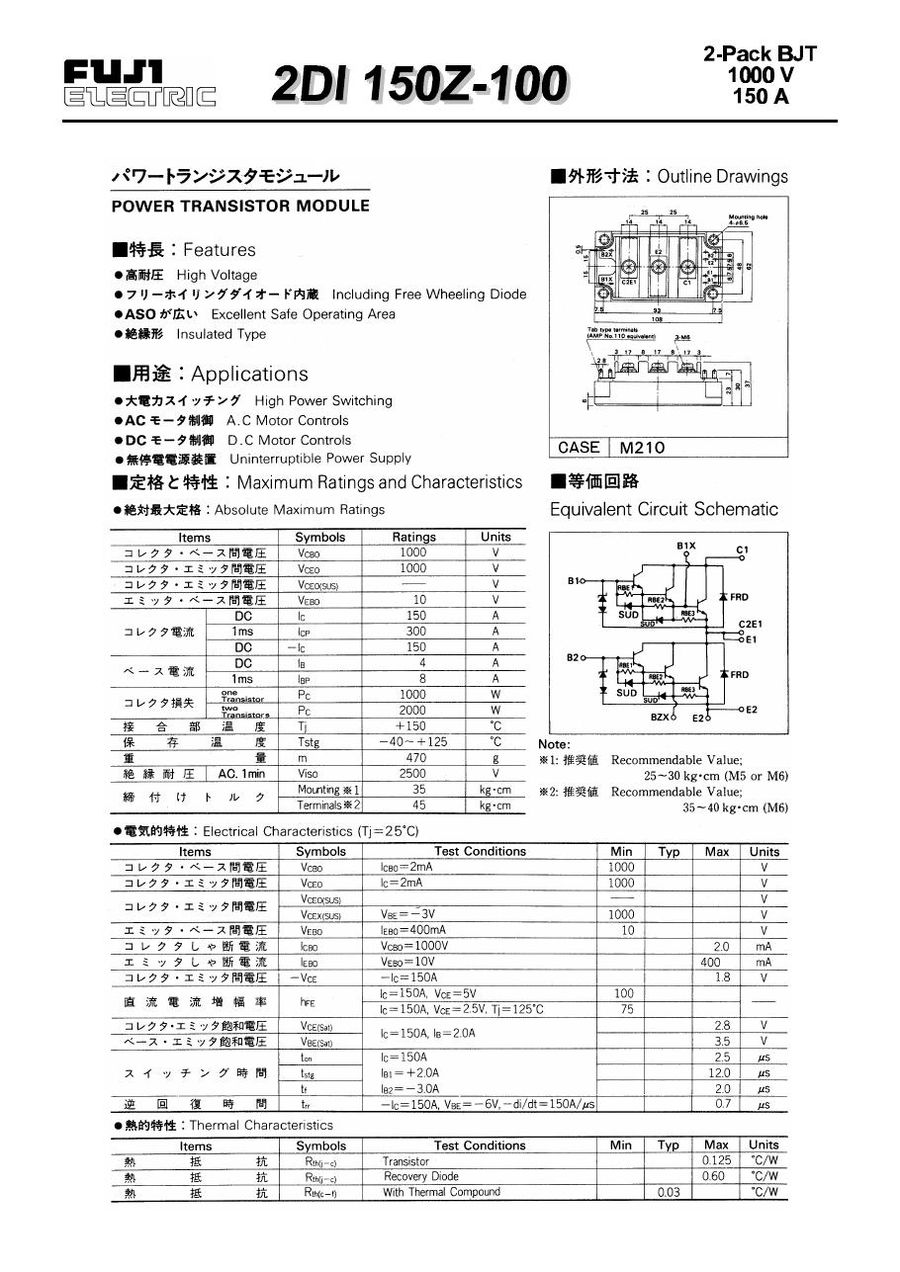

Download 2DI150Z-100-E Datasheet

Datasheet not available
