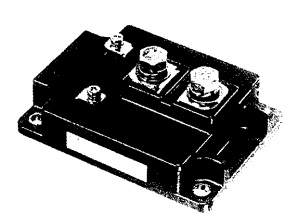

1MBI600PX-140-03 Fuji Electric - IGBT Module

1MBI600PX-140-03 Description

1MBI600PX-140-03 is an IGBT module, 1-pack (customer specification MS5F4851) from Fuji Electric, rated 1400V, 600A.

USComponent supplies 1MBI600PX-140-03 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 1MBI600PX-140-03 is used for Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, and Industrial machines, such as Welding machines.

Key Specifications

1MBI600PX-140-03 is an IGBT module, 1-pack (customer specification MS5F4851) from Fuji Electric, rated 1400V, 600A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Fuji Electric
Collector-emitter voltage VCES	1400 V
IC (Tc = 25 / 80 °C)	800 / 600 A
IC pulse (1 ms, Tc = 25 / 80 °C)	1600 / 1200 A
VCE(sat) typ. / max. (IC = 600 A)	2.85 V / 3.2 V
Max. power dissipation	4100 W
Operating temperature Tj	+150 °C
Isolation voltage	AC 2500 V, 1 min
Datasheet	Available on this page (PDF)

Note: data taken from the Fuji Electric datasheet of Fuji Electric specification sheet MS5F4851, which covers 1MBI600PX-140-03.
