1MBI600U-120 Fuji Electric - IGBT power module

1MBI600U-120 Description

Fuji Electric 1MBI600U-120 is an IGBT module rated at 1200 V. Inside, it has a single switch with its freewheeling diode (1-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 1MBI600U-120, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 1MBI600U-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

1MBI600U-120 is a 1,200 V, 600 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	600 A
Isolation voltage	2,500 V

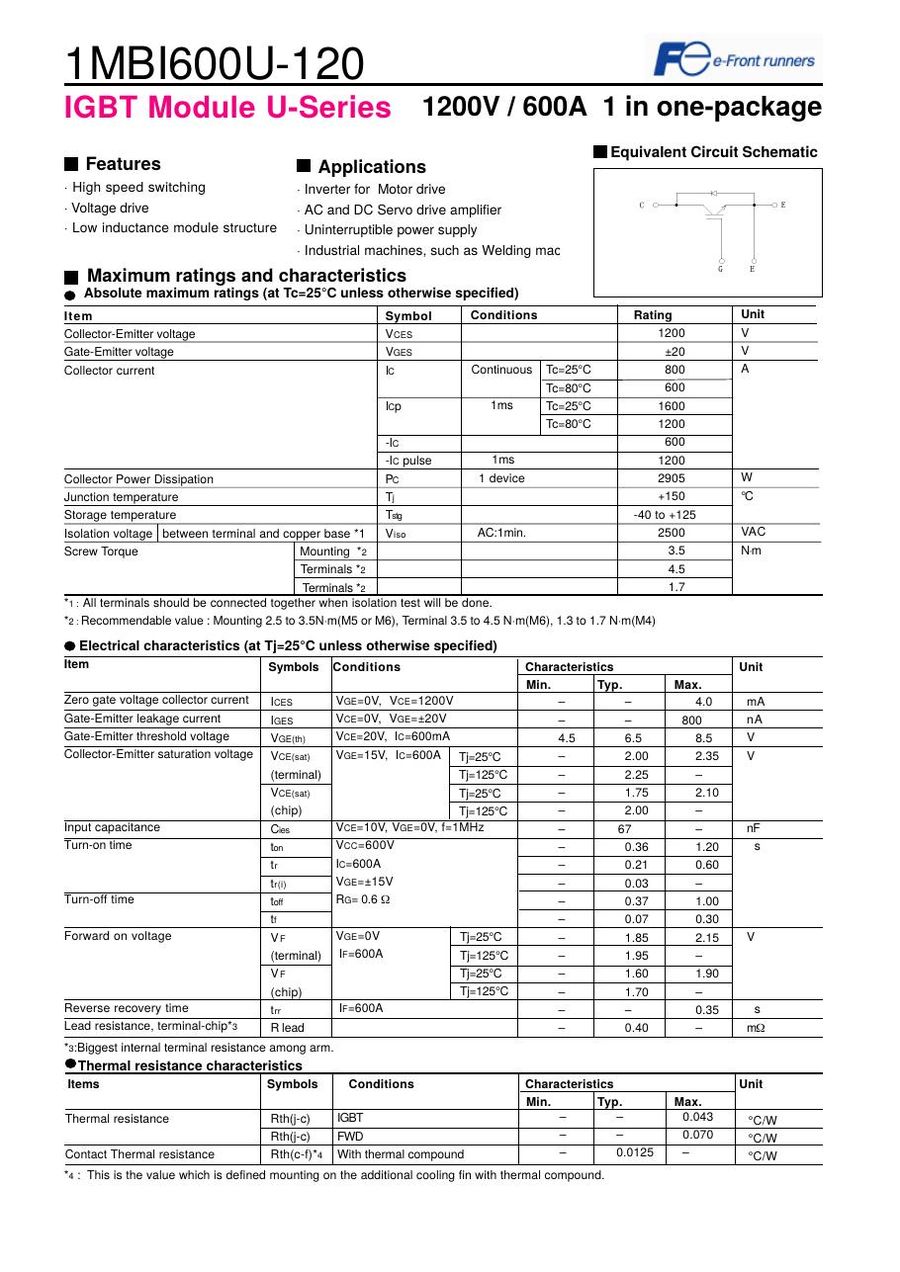

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBI600U-120 (reply within 24 hours)
