1MBI600UB-120 Fuji Electric - IGBT Module

1MBI600UB-120 Description

Rated at 1200 V and 600 A, the Fuji Electric 1MBI600UB-120 is an IGBT module. It is built with a single switch with its freewheeling diode (1-in-1). Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 1MBI600UB-120, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 1MBI600UB-120 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

1MBI600UB-120 is a 1,200 V, 600 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	600 A
Isolation voltage	2,500 V

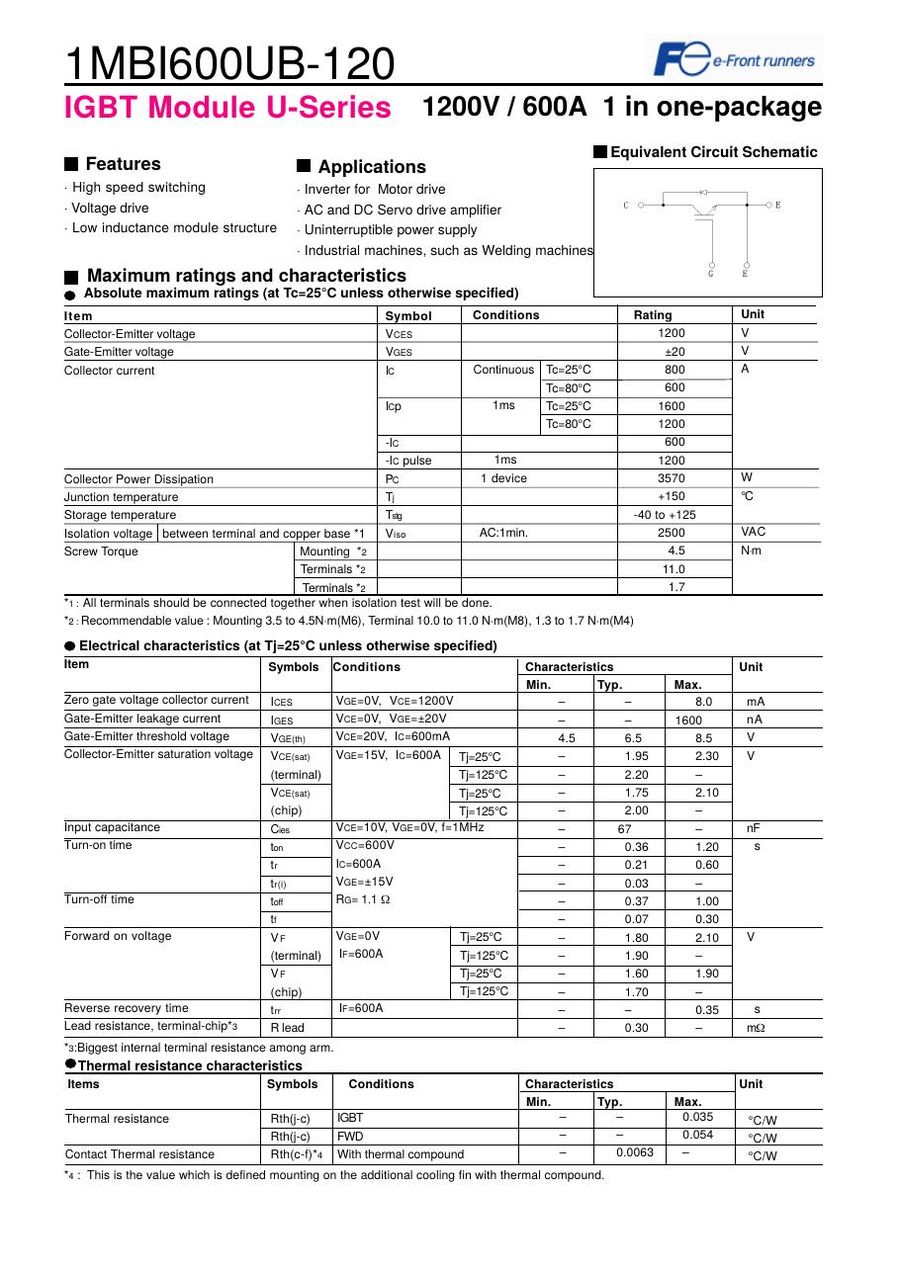

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBI600UB-120 (reply within 24 hours)
