1MBI300L-120 Fuji Electric - IGBT Module

1MBI300L-120 Description

1MBI300L-120 is an IGBT module (L series), 1-pack from Fuji Electric, rated 1200V, 300A. Typical applications: Inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.

USComponent supplies 1MBI300L-120 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 1MBI300L-120 is used for Inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.

Key Specifications

1MBI300L-120 is an IGBT module (L series), 1-pack from Fuji Electric, rated 1200V, 300A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Fuji Electric
Collector-emitter voltage VCES	1200 V
Collector current IC (continuous)	300 A
IC pulse (1 ms)	600 A
VCE(sat) typ. / max. (IC = 300 A)	2.7 V / 3.5 V
Max. power dissipation	2000 W
Operating temperature Tj	+150 °C
Isolation voltage	2500 V AC, 1 min
Weight	415 g

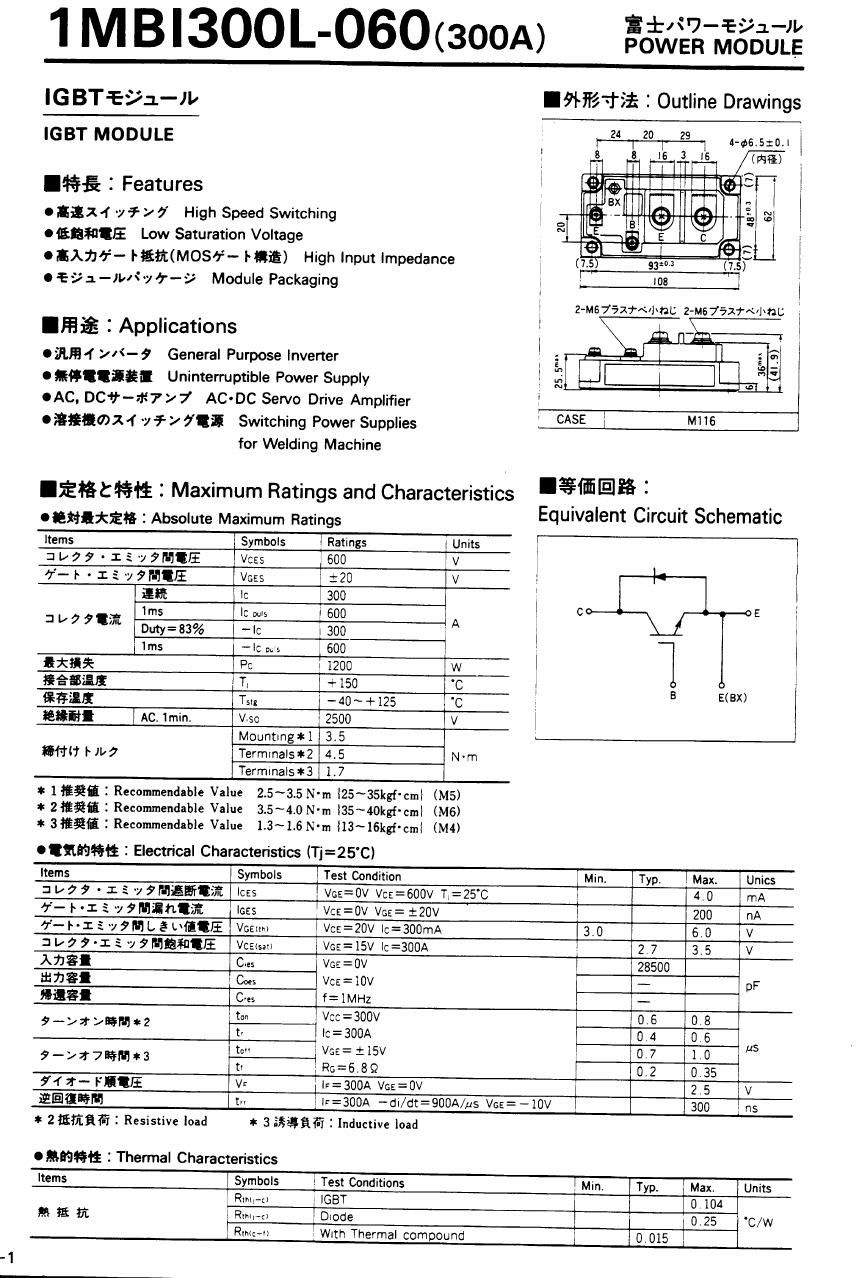

Datasheet	Available on this page (PDF)
