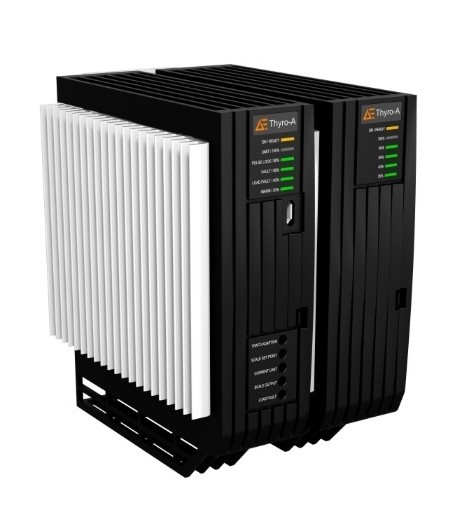

2A500-16H3 AEG - Thyro Power Controller

2A500-16H3 Description

The 2A500-16H3 from AEG is a thyristor power controller with a 500 V / 16 A rating. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 2A500-16H3, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

AEG 2A500-16H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

2A500-16H3 is an AEG / Advanced Energy Thyro-A 2A SCR power controller, 500 V, 16 A. Source: Thyro-A datasheet (ordering code Thyro-A-2A-500-16-H-3).

Parameter	Value
Ordering code	Thyro-A-2A-500-16-H-3
Model	Thyro-A digital SCR power controller
Phase type	2A: two phase power controller for three phase economic circuits
Type voltage	500 V (215 V to 550 V, -57% to +10%)
Type current	16 A
Apparent power	14 kVA
Fuse (H)	Integrated semiconductor fuse
Fan (F)	Not fitted (no 'F' in ordering code)
Control (3)	Standard V, V² control modes
Operating modes	TAKT
Accuracy	±3% voltage, ±1.5% current
Frequency	47 to 63 Hz
Dimensions (W × H × D)	89 × 136 × 129 mm, 1.4 kg

Technical document (PDF)  |  Request a quote for 2A500-16H3 (reply within 24 hours)
