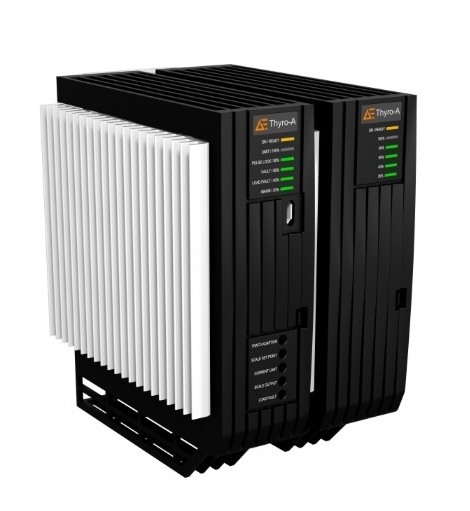

2A500-30H3 AEG - Thyro Power Controller

2A500-30H3 Description

The AEG 2A500-30H3 is a thyristor power controller, rated for 500 V and 30 A. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 2A500-30H3 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

AEG 2A500-30H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

2A500-30H3 is an AEG / Advanced Energy Thyro-A 2A SCR power controller, 500 V, 30 A. Source: Thyro-A datasheet (ordering code Thyro-A-2A-500-30-H-3).

Parameter	Value
Ordering code	Thyro-A-2A-500-30-H-3
Model	Thyro-A digital SCR power controller
Phase type	2A: two phase power controller for three phase economic circuits
Type voltage	500 V (215 V to 550 V, -57% to +10%)
Type current	30 A
Apparent power	26 kVA
Fuse (H)	Integrated semiconductor fuse
Fan (F)	Not fitted (no 'F' in ordering code)
Control (3)	Standard V, V² control modes
Operating modes	TAKT
Accuracy	±3% voltage, ±1.5% current
Frequency	47 to 63 Hz
Dimensions (W × H × D)	89 × 136 × 129 mm, 1.4 kg

Technical document (PDF)  |  Request a quote for 2A500-30H3 (reply within 24 hours)
