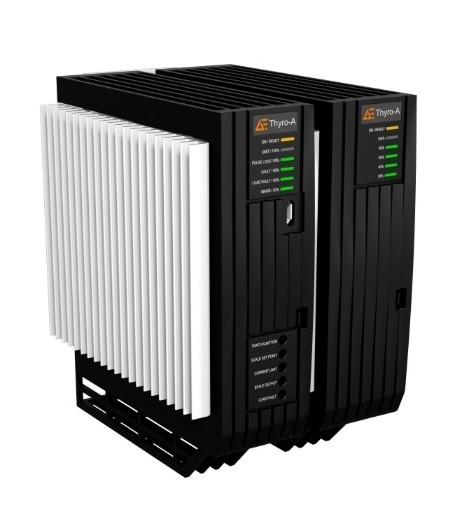

2A400-16H3 AEG - Thyro Power Controller

2A400-16H3 Description

Rated at 400 V and 16 A, the AEG 2A400-16H3 is a thyristor power controller. Thyro power controllers like this regulate electric heaters, furnaces, infrared emitters and transformer loads.

Looking for a replacement 2A400-16H3? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

AEG 2A400-16H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

2A400-16H3 is an AEG / Advanced Energy Thyro-A 2A SCR power controller, 400 V, 16 A. Source: Thyro-A datasheet (ordering code Thyro-A-2A-400-16-H-3).

Parameter	Value
Ordering code	Thyro-A-2A-400-16-H-3
Model	Thyro-A digital SCR power controller
Phase type	2A: two phase power controller for three phase economic circuits
Type voltage	400 V (172 V to 440 V, -57% to +10%)
Type current	16 A
Apparent power	11 kVA
Fuse (H)	Integrated semiconductor fuse
Fan (F)	Not fitted (no 'F' in ordering code)
Control (3)	Standard V, V² control modes
Operating modes	TAKT
Accuracy	±3% voltage, ±1.5% current
Frequency	47 to 63 Hz
Dimensions (W × H × D)	89 × 136 × 129 mm, 1.4 kg

Technical document (PDF)  |  Request a quote for 2A400-16H3 (reply within 24 hours)
