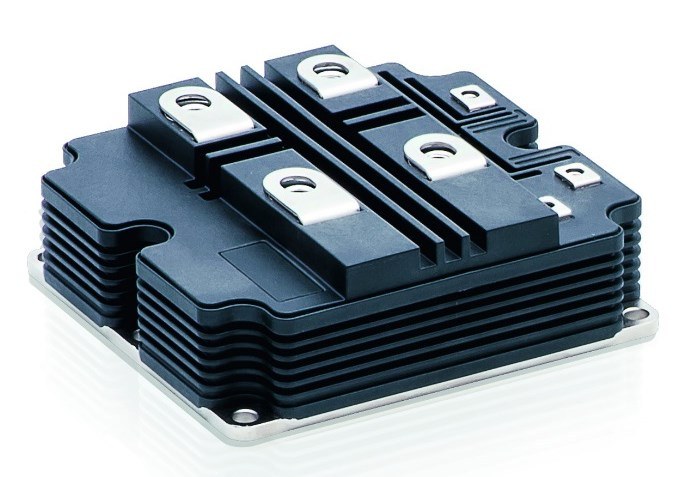

5SNA0800J450300 ABB - IGBT Module
Also written as: 5SNA 0800J450300
5SNA0800J450300 Description
5SNA0800J450300 is a 4500 V / 800 A IGBT module from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SNA0800J450300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Ultra low-loss, rugged SPT + chip-set
- Smooth switching SPT + chip-set for good EMC
- Industry standard package
- High power density
- AlSiC base-plate for high power cycling capability
- AlN substrate for low thermal resistance
- Improved high reliability package
Target Applications
ABB 5SNA0800J450300 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SNA0800J450300 is a 4500 V / 800 A IGBT module from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | IGBT module |
| Configuration | Single IGBT |
| Collector-emitter voltage (VCES) | 4500 V |
| DC collector current (IC) | 800 A |
| Package | HiPak |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SNA 0800J450300".
Technical document (PDF) | Request a quote for 5SNA0800J450300 (reply within 24 hours)
