5SED0890T2260 ABB - Diode Module

Also written as: 5SED 0890T2260

Category: Diode & Rectifier Modules

Specifications: 2200V, 889A

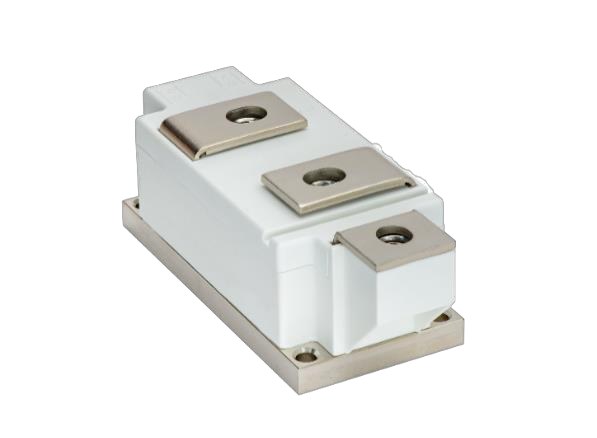

5SED0890T2260 ABB Diode Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

5SED0890T2260 Description

5SED0890T2260 is a 2200 V / 889 A diode module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SED0890T2260 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Insulated baseplate by AIN ceramic
  • Precision pressure contacts for high reliability
  • Industry standard housing

Target Applications

ABB 5SED0890T2260 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SED0890T2260 is a 2200 V / 889 A diode module from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeDiode module
ConfigurationDiode / diode (common cathode)
Repetitive peak reverse voltage (VRRM)2200 V
Average forward current (IFAVM)889 A
Housing60mm
Supply statusNew product (Hitachi Energy)
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SED 0890T2260".

Technical document (PDF)  |  Request a quote for 5SED0890T2260 (reply within 24 hours)

Related Part Numbers

5SED0890T22405SED0890T22505SEE0540T18305SEG0540T1820
5SET0540T18005SDA06D50075SDA07D38065SDA08D3205
5SDA09D26045SDA10D23035SDA11D17025SDA14F5007
5SDA16F38065SDA21F32045SDA24F23035SDA27F2002
