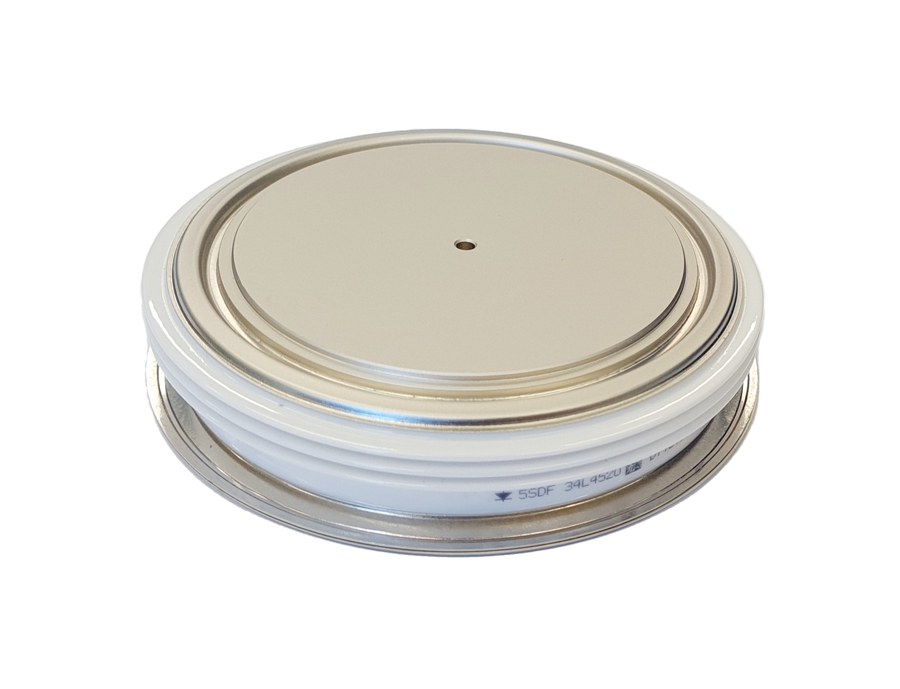

5SDF34L4520 ABB - Diode
Also written as: 5SDF 34L4520
5SDF34L4520 Description
5SDF34L4520 is a 4500 V / 2690 A fast recovery diode from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SDF34L4520 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Industry standard housing
- Cosmic radiation withstand rating
- Optimized low switching losses
- Optimized for IGCT and IGBT operation
- High RBSOA up to high di/dt
- Patented free floating technology
Target Applications
ABB 5SDF34L4520 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SDF34L4520 is a 4500 V / 2690 A fast recovery diode from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | Fast recovery diode |
| Repetitive peak reverse voltage (VRRM) | 4500 V |
| Average forward current (IF(AV)M) | 2690 A |
| Surge forward current IFSM | 40 kA |
| DC link voltage VDC | 2800 V |
| Package (mm) | 120/85 |
| Supply status | New product (Hitachi Energy) |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SDF 34L4520".
Technical document (PDF) | Request a quote for 5SDF34L4520 (reply within 24 hours)
