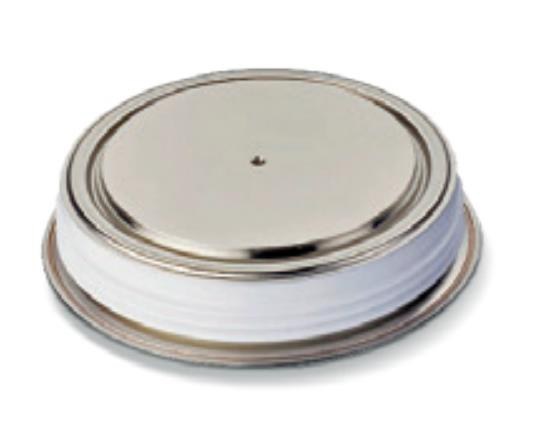

5SDF18H4520 ABB - Diode

5SDF18H4520 Description

5SDF18H4520 is a 4500 V / 1830 A fast recovery diode from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SDF18H4520 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

ABB 5SDF18H4520 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SDF18H4520 is a 4500 V / 1830 A fast recovery diode from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.

Parameter	Value
Manufacturer	Hitachi Energy (former ABB Semiconductors)
Product type	Fast recovery diode
Repetitive peak reverse voltage (VRRM)	4500 V
Average forward current (IF(AV)M)	1830 A
Surge forward current IFSM	27 kA
DC link voltage VDC	2800 V
Package (mm)	94/63
Supply status	New product (Hitachi Energy)
Datasheet	Available on this page (PDF)

Note: Hitachi Energy writes this part number as "5SDF18H4520".
