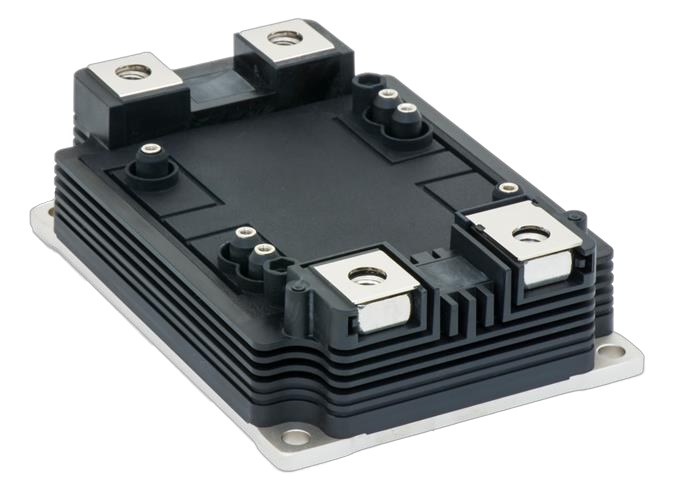

5SFG0480Z330100 ABB - SiC MOSFET Module

5SFG0480Z330100 Description

5SFG0480Z330100 is a 3300 V / 2 x 480 A SiC MOSFET module (LinPak) from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SFG0480Z330100 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

ABB 5SFG0480Z330100 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SFG0480Z330100 is a 3300 V / 2 x 480 A SiC MOSFET module (LinPak) from Hitachi Energy (former ABB Semiconductors) - LinPak phase leg SiC MOSFET module, 10.2 kV insulation. Source: Hitachi Energy (ABB) datasheet and product table.

Parameter	Value
Manufacturer	Hitachi Energy (former ABB Semiconductors)
Product type	SiC MOSFET module (LinPak)
Configuration	Phase leg MOSFET
Drain-source voltage	3300 V
Drain current (ID)	2 x 480 A
Package	LinPak
Datasheet	Available on this page (PDF)

Note: Hitachi Energy writes this part number as "5SFG 0480Z330100".
