SKM400GAR12V Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 400A

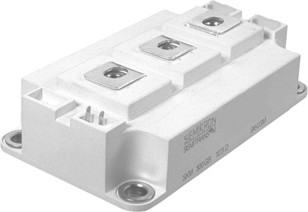

SKM400GAR12V Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKM400GAR12V Description

SKM400GAR12V is a 1200 V / 400 A chopper IGBT module from Semikron Danfoss (SEMITRANS 3 package). Typical applications: electronic welders, Brake chopper, Switched reluctance motor.

USComponent supplies SKM400GAR12V and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Isolated copper baseplate using DBC technology (Direct Copper Bonding)
  • UL recognized, file no. E63532
  • Increased power cycling capability
  • With integrated gate resistor
  • Low switching losses at high di/dt

Target Applications

Semikron SKM400GAR12V is used for Electronic welders, Brake chopper, Switched reluctance motor.

Key Specifications

SKM400GAR12V is a 1200 V / 400 A chopper IGBT module from Semikron Danfoss (SEMITRANS 3 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationChopper
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)400 A
Chip technologyV-IGBT
PackageSEMITRANS 3
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKM400GAR12V (reply within 24 hours)
