SKM400GAR12T4 Semikron - Thyristor / Diode Module

SKM400GAR12T4 Description

The SKM400GAR12T4 from Semikron is an IGBT module. Inside, it has a chopper arrangement. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

Looking for a replacement SKM400GAR12T4? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Semikron SKM400GAR12T4 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKM400GAR12T4 is a 1,200 V, 400 A IGBT module, chopper configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Chopper
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	400 A
Isolation voltage	4,000 V

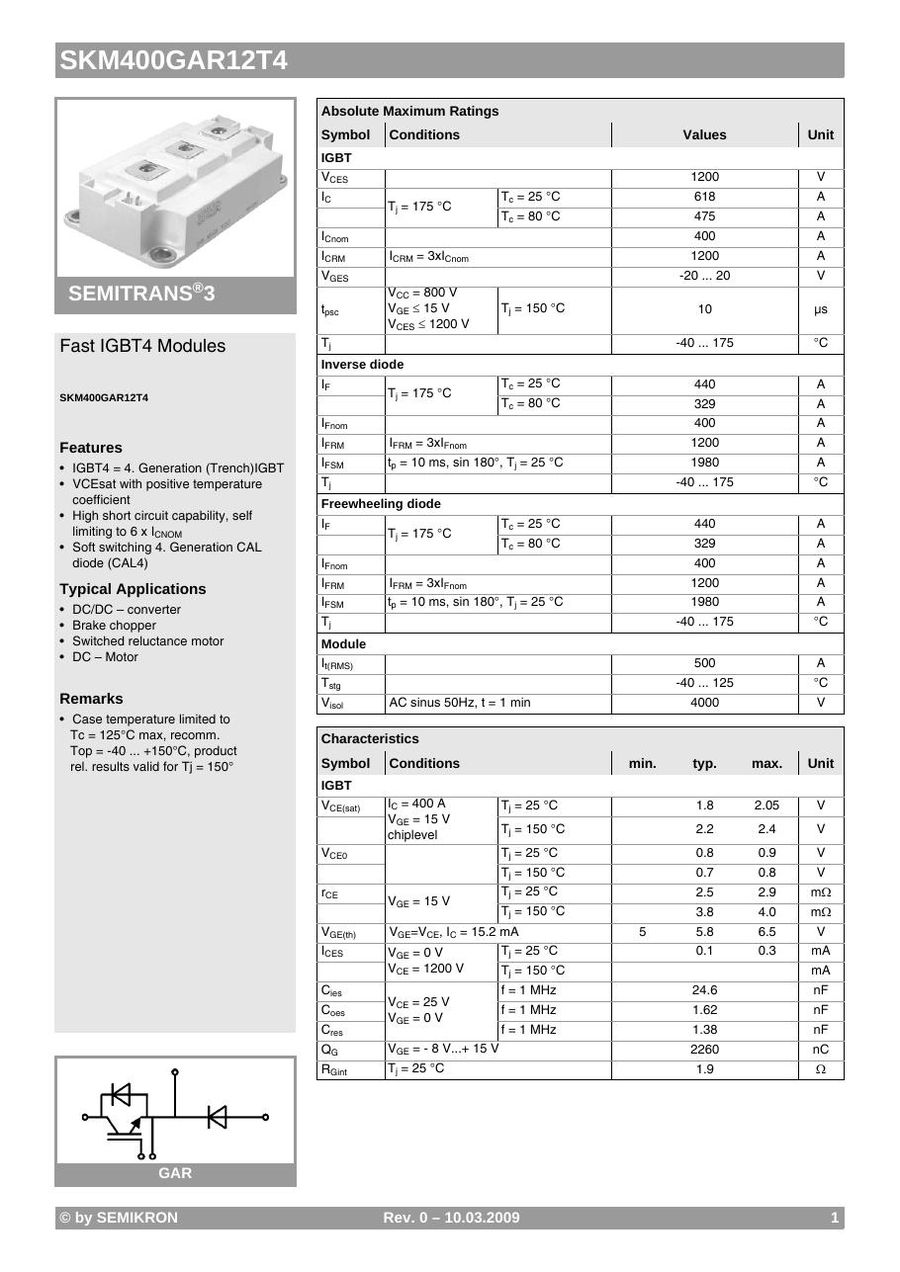

Datasheet	Available on this page (PDF)
