SKM400GB123DSemikron - IGBT Module

SKM400GB123D Description

SKM400GB123D is a high power IGBT (Insulated Gate Bipolar Transistor) module manufactured by Semikron. The module is designed to provide high current and voltage switching capability in a compact and rugged package. The SKM400GB123D module contains two IGBTs with a voltage rating of 1200V and a current rating of 400A each. The module is designed for use in high power applications such as motor drives, power supplies, and industrial equipment. The module has a range of protection features, including overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection (SCP), to ensure safe and reliable operation. It also has a built-in temperature sensor and an over-temperature protection circuit to ensure reliable operation even in harsh environments. The SKM400GB123D IGBT module has a high level of efficiency and reliability, which helps to reduce energy consumption and maintenance costs. It is commonly used in motor control, power supplies, and other applications that require high voltage and high current capabilities.

Target Applications

Semikron SKM400GB123D is used for Switching (not for linear use).

Key Specifications

Manufacturer	Semikron
Category	IGBT Module
Rated voltage	1200 V
Rated current	400 A

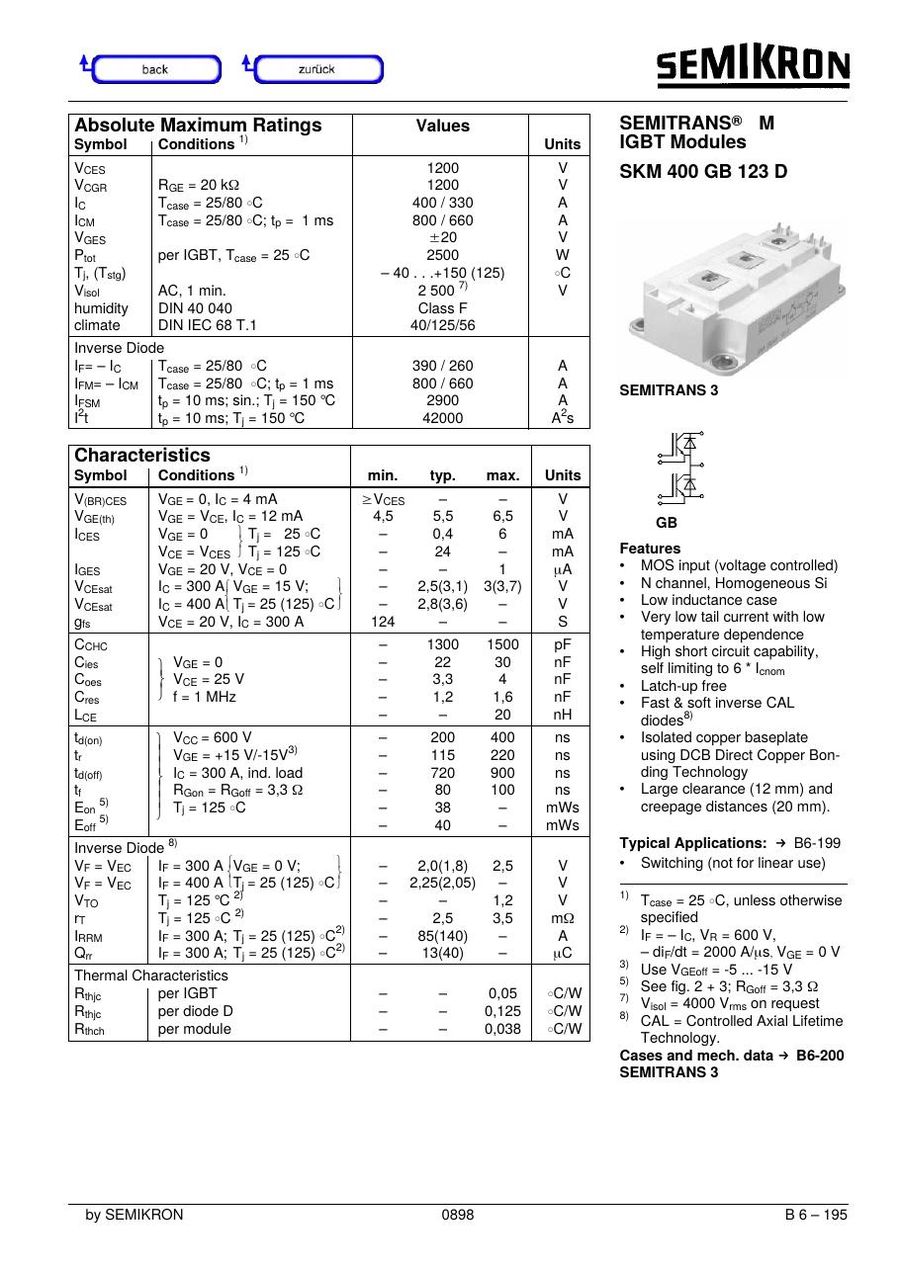

Download SKM400GB123D Datasheet

SKM400GB123D PDF Datasheet
