SKM300GA123D Semikron - IGBT Module

SKM300GA123D Description

Semikron makes the SKM300GA123D, an IGBT module. The module contains a single switch with its freewheeling diode (1-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the SKM300GA123D; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Semikron SKM300GA123D is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

SKM300GA123D is a 1,200 V, 300 A IGBT module, single configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	300 A

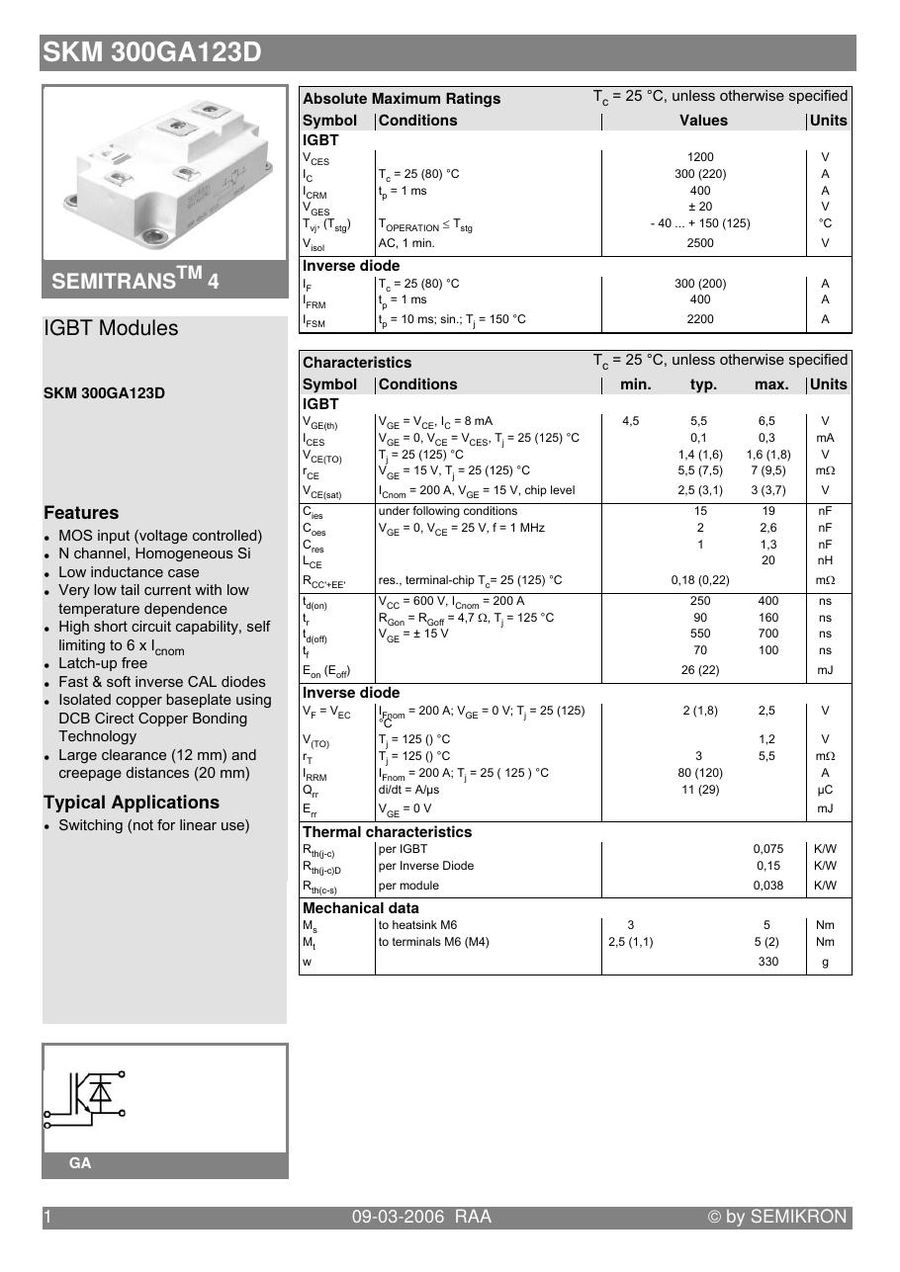

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKM300GA123D (reply within 24 hours)
