SKM300GAL066D Semikron - IGBT Module

Category: IGBT Modules

Specifications: 600V, 300A

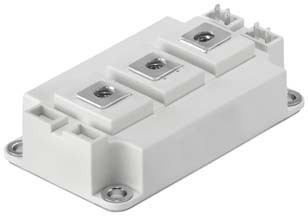

SKM300GAL066D Semikron IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

SKM300GAL066D Description

SKM300GAL066D is a 600 V / 300 A chopper IGBT module from Semikron Danfoss (SEMITRANS 3 package). Typical applications: electronic welders, Brake chopper, Switched reluctance motor.

USComponent supplies SKM300GAL066D and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Homogeneous Si
  • VCE(sat) with positive temperature coefficient
  • High short circuit capability, self limiting to 6 x IC

Target Applications

Semikron SKM300GAL066D is used for Electronic welders, Brake chopper, Switched reluctance motor.

Key Specifications

SKM300GAL066D is a 600 V / 300 A chopper IGBT module from Semikron Danfoss (SEMITRANS 3 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationChopper
Collector-emitter voltage (VCES)600 V
Nominal collector current (IC nom)300 A
Chip technologyIGBT 3 (Trench)
PackageSEMITRANS 3
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKM300GAL066D (reply within 24 hours)
