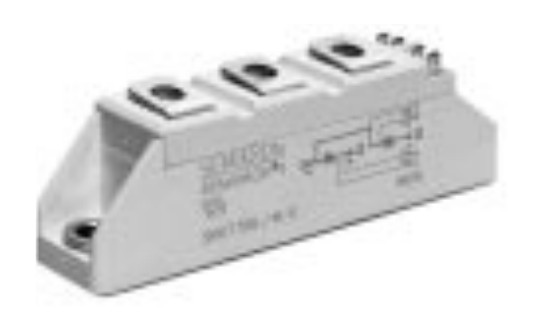

SKKH91-12D Semikron - Thyristor / Diode Module

SKKH91-12D Description

SKKH91-12D is a 1200 V, 141.3 A thyristor module made by Semikron. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

Looking for a replacement SKKH91-12D? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Semikron SKKH91-12D is used for DC motor control (e.g. for machine tools), AC motor soft starters, temperature control (e.g. for ovens, chemical processes) and professional light dimming (studios, theaters).

Key Specifications

SKKH91-12D: key data from the Semikron datasheet.

Parameter	Value
Product type	Thyristor / diode module
Repetitive peak reverse voltage (VRRM / VDRM)	1,200 V
Non-repetitive peak reverse voltage (VRSM)	1,300 V
On-state / forward voltage, max. (Tvj = 25 °C)	1.65 V
Package	SEMIPACK 1
Weight	approx. 120 g
Datasheet	Available on this page (PDF)
