SKKH92-16E Semikron - Thyristor / Diode Module

SKKH92-16E Description

Rated at 1600 V and 95 A, the Semikron SKKH92-16E is a thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the SKKH92-16E, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Semikron SKKH92-16E is used for DC motor control (e.g. for machine tools), AC motor soft starters and professional light dimming (studios, theaters).

Key Specifications

SKKH92-16E is a 1,600 V, 95 A thyristor/diode module. Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor/diode module
Repetitive peak reverse voltage (VRRM / VDRM)	1,600 V
Non-repetitive peak reverse voltage (VRSM)	1,700 V
Average on-state / forward current	95 A (sin. 180°, Tc = 85 °C)
RMS current, max. (continuous)	150 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.65 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Package	SEMIPACK 1
Weight	approx. 95 g

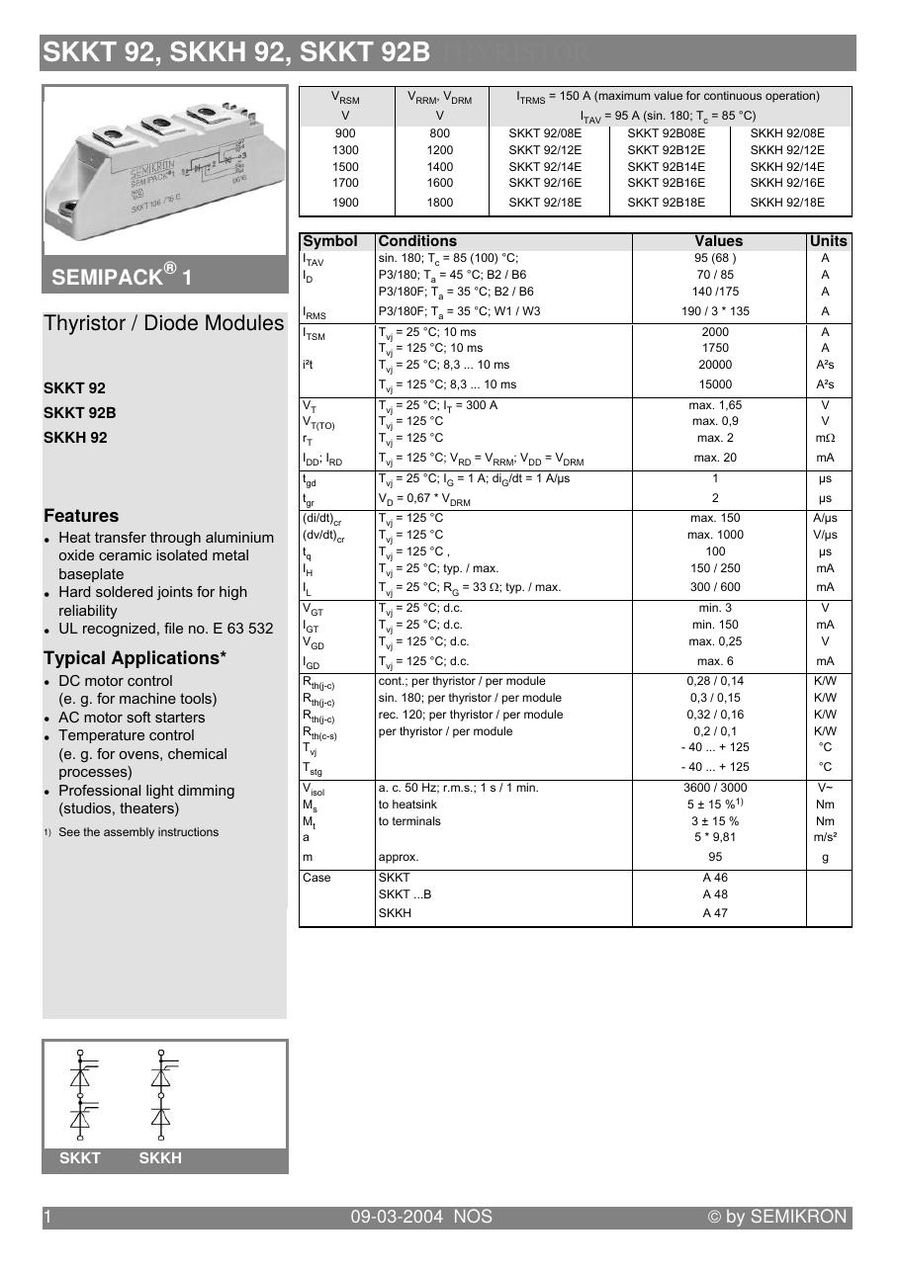

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKH92-16E (reply within 24 hours)
